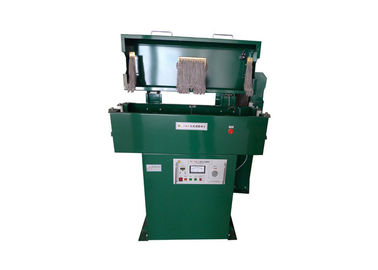

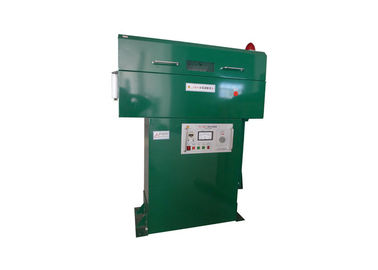

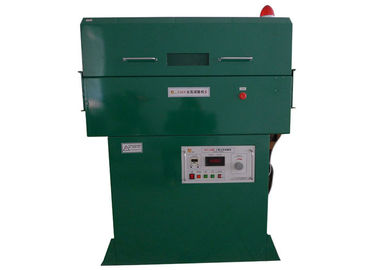

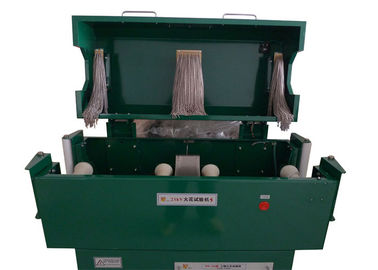

UL1581-1990 Cable Testing Equipment / Wire Cable Spark Tester

UL1581-1990 Cable Testing Equipment / Wire Cable Spark Tester

  • UL1581-1990 Cable Testing Equipment / Wire Cable Spark Tester
  • UL1581-1990 Cable Testing Equipment / Wire Cable Spark Tester
  • UL1581-1990 Cable Testing Equipment / Wire Cable Spark Tester
  • UL1581-1990 Cable Testing Equipment / Wire Cable Spark Tester
  • UL1581-1990 Cable Testing Equipment / Wire Cable Spark Tester
UL1581-1990 Cable Testing Equipment / Wire Cable Spark Tester
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
High Light:

power cable tester

,

electric wire tester

Wire Cable Spark Tester , Electrical Wire Spark Tester




Product information:


Wire Cable Spark Tester complies with the standard requirement of UL1581-1990.
It is indispensable test equipment for testing the quality of insulating layer with high voltage during the productive process of electric wire and cable.
These series of testers have good humidity resistance and Strong ability of anti-interference. Thus to make sure the transformer can work reliably for a long term in the humid environment. It is equipped with Self-checking spark button which can check whether the equipment is in normal working station to make sure the accuracy of the test.





Technical parameters:



Item/parameters


HT-10(10KV)

HT-15(10KV)

HT-15P(15KVwinding displacement machine)

HT-25(25KV)

Sensitivity

<600μA

<600μA

<600μA

<600μA

External dimension

1050×450×1250mm

1050×450×1250mm

1200*450*1250mm

1100*400*1300mm

Input voltage

AC 220V

AC 220V

AC 220V

AC 220V

Output voltage

AC 0~10kV

AC 0~15kV

AC 0~15kV

AC 0~25kV

Electrode Length

400mm

400mm

800mm

200mm

Maximum linear speed

480m/min

480m/min

240m/min

240m/min

Maximum diameter of the cable

φ10mm

φ10mm

-

φ60mm

Maximum width of the winding displacement

-

-

100mm

-

-

-

-

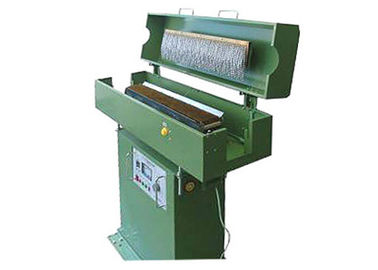

The high voltage terminal is the structure of hair brush which is exclusively used in the detection of electronic line such as winding displacement of computer.

-
