IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit

    • IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit
    • IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit
    • IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit
    • IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit
    • IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit
    • IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit
  • IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit

    Product Details:

    Place of Origin: China
    Brand Name: HongTong
    Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
    Model Number: DP-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Plywood
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 15 set per month
    Contact Now
    Detailed Product Description
    Rain Area: 1000mmX1000mm Dripping Aperture: ¢0.4mm
    Water Dripping Height: 200mm Test Time: 10Min
    Standard: IEC60529 IPX1 IPX2

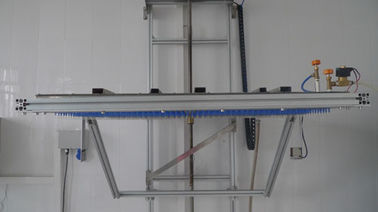

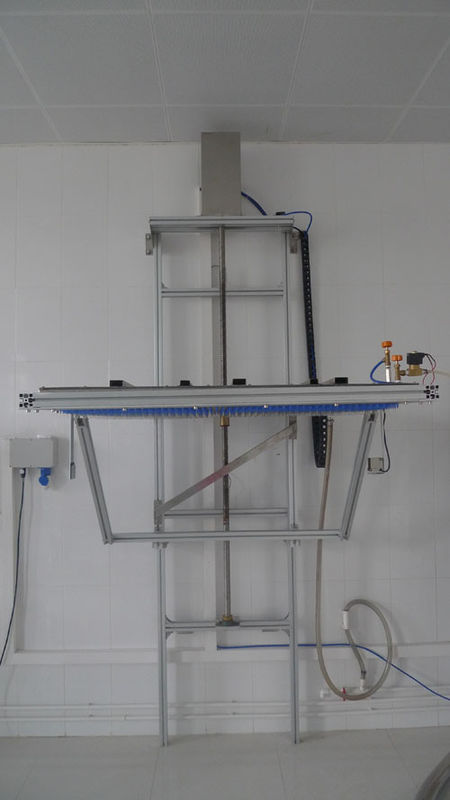

    IEC60529 IPX1 IPX2 Drip Box Waterproof Testing Machine With Clean Water Filtration Unit


    Product information:
    This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX1 and IPX2.

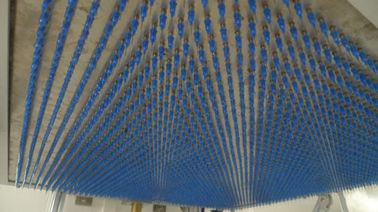

    The rise and fall of the drip box is controlled by the motor. It is equipped with the rotatable objective table whose rotating speed is 1r/min for IPX1 test;It is also equipped with 15°bevel for supporting sample for the IPX2 test. What’s more, this device is with the clean water filtration unit which can prevent pinhole from jamming.


    Technical parameters:


    No.

    Item

    Parameter

    1

    Power supply

    Single phase AC220V,50Hz

    2

    Water supply

    Water flow rate>10L/min±5% clean water without inclusion.
    This device is equipped with clean water filtration unit

    3

    Water tank size

    L*W*H=1100×800×350mm

    4

    Drop test area

    L*W*H=1000×600mm,customizable

    5

    Drop height

    200mm~1650mm adjustable

    6

    Dripping speed (water flow)

    1+0.05  0mm/min or 3+0.05  0mm/min (Switchable)

    7

    Water hole

    Φ0.4mm

    8

    Distance between holes

    20mm

    9

    Diameter of  rotary table

    Φ600mm

    10

    Rotating speed of the rotary table

    1r/min

    11

    Load bearing of the rotary table

    ≤150㎏electrical equipment (without rotary column)

    12

    15°bevel for supporting sample

    15°bevel

    13

    Site requirements

    Dedicated IP waterproof test room,The ground should be flat with illumination
    10A waterproof leakage switch(or socket)used for equipment

    14

    The area

    L*W*H=1500mm×1500mm×2650mm,the size can be customized by the customers’ need.
