PLC Control IEC Test Equipment Microwave Oven Door Endurance Tester

PLC Control IEC Test Equipment Microwave Oven Door Endurance Tester

    • PLC Control IEC Test Equipment Microwave Oven Door Endurance Tester
    • PLC Control IEC Test Equipment Microwave Oven Door Endurance Tester
    • PLC Control IEC Test Equipment Microwave Oven Door Endurance Tester
    • PLC Control IEC Test Equipment Microwave Oven Door Endurance Tester
  • PLC Control IEC Test Equipment Microwave Oven Door Endurance Tester

    Product Details:

    Place of Origin: China
    Brand Name: HongTong
    Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
    Model Number: MDE-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Plywood
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 15 set per month
    Contact Now
    Detailed Product Description

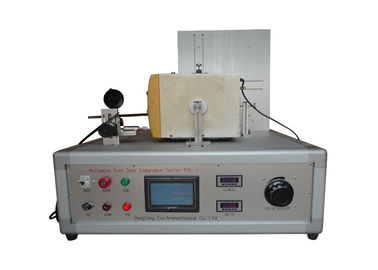

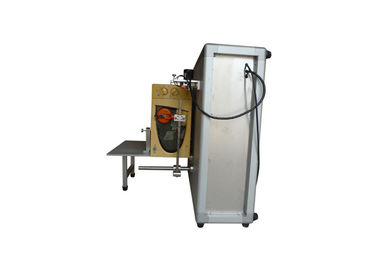

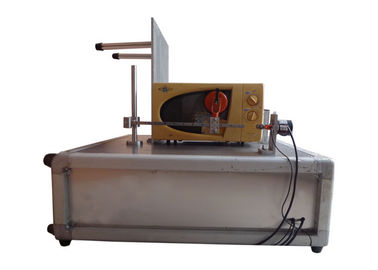

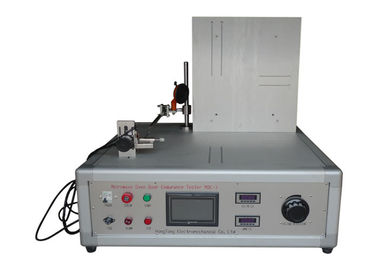

    Microwave Oven Door Endurance Tester
    Product information:
    The microwave oven door endurance tester is designed and manufactured according to IEC60335-2-25. It is a dedicated tester which is used to inspect the wear resistance of the microwave door system, including the structure of the hinge, microwave seals and other related components that during the process of using.
    The device uses advanced PLC control system and humanized touch screen operator interface, It is widely applicable to test vertical and horizontal door opening microwave oven. The test equipment is easy to operate, durable and practical.
    It is equipped with full stainless steel manipulator, vacuum sucker structure and standard configuration TFT true color liquid crystal touch screen. The rotation angle and the speed of door opening/closing are adjustable. Thereby it can truly simulate the person’s hand to open and close the microwave oven door and other similar equipment. Thus achieve the intelligentized control method.

    Power outlet has the function of detection which can judge whether the specimen is working with conducting. When doing the load test, if the specimen is not conducting during testing, the equipment will automatically stop working. At that time, the counter will record the test times and the alarm sounds. This function can be opened or closed according to the actual need.


    Technical parameters:

    Control mode

    PLC control

    Display mode

    True color liquid crystal display(standard configuration of 7 inch display
    control touch screen)

    Holder construction

    Top grade aluminium alloy sections


    Stepper motor

    Test station

    Single (vertical and horizontal opening are switchable)

    Working power supply

    AC 220V 50HZ

    Working power supply

    Touch screen settings,0-99999s adjustable, it will automatic stop when
    reach the number of times

    Output power


    Open/close time

    Touch screen settings ,0-9999S adjustable

    Open/close speed

    Touch screen settings, adjustable

    Opening door angle

    Touch screen settings ,0-180° adjustable


    One working station ( left opening door or swing-up door )

    Opening door lock

    Eccentric gear machine structure automatically open  or lock the door




    Equipped with power socket of 10A,for the specimen work under 2000W

    Conforming to standard

      IEC60335-2-25 clause 18
