220V 50Hz Light Testing Equipment Lamp Tilt Test Bench 0-30 Degree GB7000

220V 50Hz Light Testing Equipment Lamp Tilt Test Bench 0-30 Degree GB7000

    • 220V 50Hz Light Testing Equipment Lamp Tilt Test Bench 0-30 Degree GB7000
  • 220V 50Hz Light Testing Equipment Lamp Tilt Test Bench 0-30 Degree GB7000

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: TUV、ITS、CSA、BV、SGS 、CNAS
    Model Number: IPD-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 25 days
    Payment Terms: T/T
    Supply Ability: 20 set/ month
    Contact Now
    Detailed Product Description
    High Light:

    light testing equipment

    ,

    luminaire testing

    220V 50Hz Light Testing Equipment Lamp Tilt Test Bench 0-30 Degree GB7000





    Product information:

    This device complies with GB7000 and other standards, the device consists of a work surface and angle adjustment device, is suitable for all types of portable lamps and similar electrical appliances products for mechanical stability test, the test sample is placed  on countertops, to assess its mechanical stability through different tilt angles.



    Technical specification and parameter configuration

    Working condition:

    Environment:0℃~+40℃;Working power supply :220V±10%   50Hz

    Technical index:

    1, Tilt angle :0-30 ° stepless adjustable, electric control, encoders intelligent digital display; equipped with angle measuring instrument calibration, easy to operate, high accuracy angle, precision ± 0.5 °;

    2, The maximum weight load: 50kg, (load can be improved as per customer requirements)steel plate surface is treated by painting;

    3, Motor speed: 0.50r/min (frequency control for optional), there are reliable earthing contact and power plug connector on the test bench of accessible metal surface;

    4, Table diameter: 800mm;

    5, The test bench with stable whole structure, and beautiful appearance.

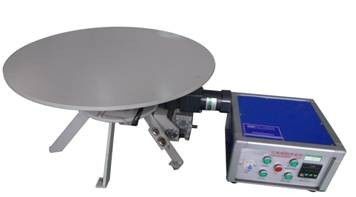

    Reference pictures:



    220V 50Hz Light Testing Equipment Lamp Tilt Test Bench 0-30 Degree GB7000 0
