UL507 Probe For Film - Coated Wire Electric Fans Test 101.6mm Length 19.05mm Diameter

UL507 Probe For Film - Coated Wire Electric Fans Test 101.6mm Length 19.05mm Diameter

  • UL507 Probe For Film - Coated Wire Electric Fans Test 101.6mm Length 19.05mm Diameter
  • UL507 Probe For Film - Coated Wire Electric Fans Test 101.6mm Length 19.05mm Diameter
  • UL507 Probe For Film - Coated Wire Electric Fans Test 101.6mm Length 19.05mm Diameter
UL507 Probe For Film - Coated Wire Electric Fans Test 101.6mm Length 19.05mm Diameter
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate (cost additional)
Model Number: HT-U02
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Aluminum Box
Delivery Time: 3 Days
Payment Terms: T/T
Supply Ability: 100 set/ month
Contact Now
Detailed Product Description
Product Name: UL Probe For Uninsulated Live Parts Warranty: 1 Year
Material: Nylon Handle + Stainless Steel Probe Standards: UL507, UL749, UL1278 And Etc.
Length 1: 101.60mm Length 2: 14.275mm
Radius: 4.75mm Diameter 1: 12.70mm
Diameter 2: 19.05mm
High Light:

UL507 Test Finger Probe

,

101.6mm Length Test Finger Probe

,

Film Coated Wire Test Finger Probe

UL507 Probe for Film-coated Wire ELECTRIC FANS TEST 101.6mm length 19.05mm Diameter





Description in UL507 Clause 9.1~9.3:

9 Accessibility of Live Parts
9.1 General
9.1.1 To reduce the risk of unintentional contact that involves a risk of electric shock from uninsulated live parts and film-coated wire, an opening in an enclosure of an appliance or in a motor shall comply with 9.3.1 – 9.4.1 and Table 9.1.
9.2 Directly- and indirectly-accessible motor
9.2.1 A directly accessible motor is a motor:
a) That can be contacted without removing any part; or                      Test Finger Probe
b) That is located to be accessible to contact.
9.3 Application of probes
9.3.1 The probes referenced in Table 9.1 and illustrated in Figure 9.2 shall be applied to any depth that the opening permits and shall be rotated or angled before, during, and after insertion through the opening to any position that is necessary to try to contact an uninsulated live part or film-coated wire. If necessary, the configuration shall be changed after insertion through the opening. Configuration refers to positioning of the jointed portions of the probes.              Test Finger Probe



Standard: UL507-2006(PA135A)Fig 9.1, UL749 Fig 1, UL982 Fig 58.6 and UL1278 Fig 8.1(PA130A).

Application:It is used for the performance of the electrical equipment enclosure preventing electric shock.

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:Nylon handle + probe, it is manufactured according to the standard figure.                                 Test Finger Probe



Parameters:

Name Value
Length 1 101.60mm(4.0 inches)
Length 2 14.275mm(0.562 inch)
Radius 4.75mm(0.187 inch)
Diameter 1 12.70mm(0.50 inch)
Diameter 2 19.05mm(0.75 inch)


UL507 Probe For Film - Coated Wire Electric Fans Test 101.6mm Length 19.05mm Diameter 0

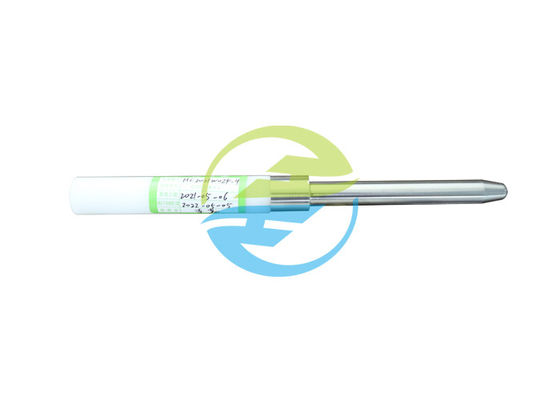

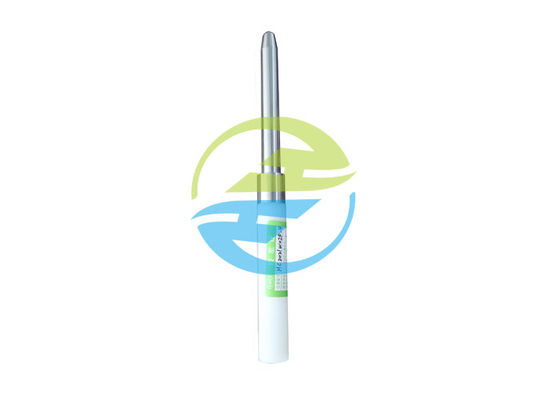

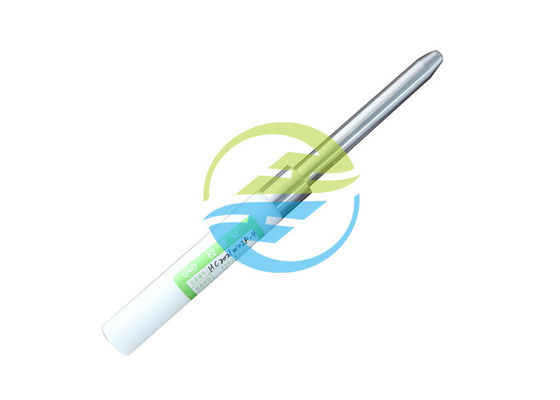

Picture for reference:                                          Test Finger Probe

UL507 Probe For Film - Coated Wire Electric Fans Test 101.6mm Length 19.05mm Diameter 1
