| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | calibration certificate (cost additional) |
| Model Number: | HCMP50 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 1 set /month |
| Product Name: | Motor Performance Test System | Standard: | IEC 60034-1 |
|---|---|---|---|
| Application: | Perform The Performance Characteristics Of Motor | Test Benchs: | 2 |
| Test Stations: | 3 | Test Samples: | Single-phase Motor, 3-phase Motor |
| Test Items: | According To Requirements | Test Software: | Self Development |
| High Light: | IEC 60034 Appliance Performance Test Lab,3 Stations Appliance Performance Test Lab |
||
Appliance Performance Test Lab IEC 60034 Motor Performance Test System With 3 Test Stations
Standard:
IEC 60034-1 Rotating electrical machines-Part 1: Rating and performance.
Application:
Motor performance testing system can stimulate corresponding loads. It can be used to carry out rotation speed characteristics curve test, torque characteristics curve test, current characteristics curve test, efficiency characteristics curve test, test of all specific points (no-load, loads, overload, etc.) and endurance test.
Test items:
1. No-load working point (no load for dynamometer): Rotation speed, input current, input voltage, input power;
2. Rated working point: Input voltage, current, power, power factor, frequency, output torque, rotation speed, output power and efficiency;
3. Characteristics curve (automatic testing system)
4. Torque, rotation speed characteristics.
5. Locked rotor test: Testing the current, torque of motor under locked-rotor status. Appliance Performance Test Lab
System Introduction:

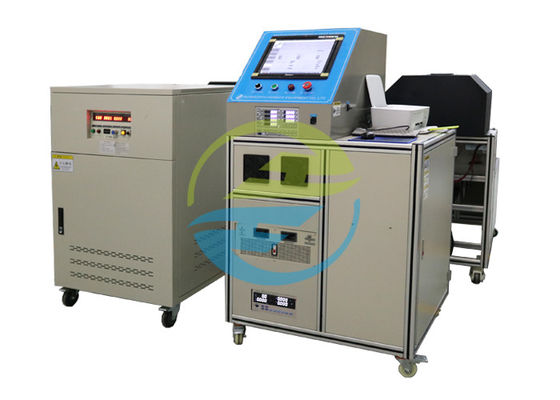

The motor test system mainly consists of a computer console, two test benches, AC power source, etc.
| Computer console | mainly composed of control computer, various buttons, power meter, etc. |

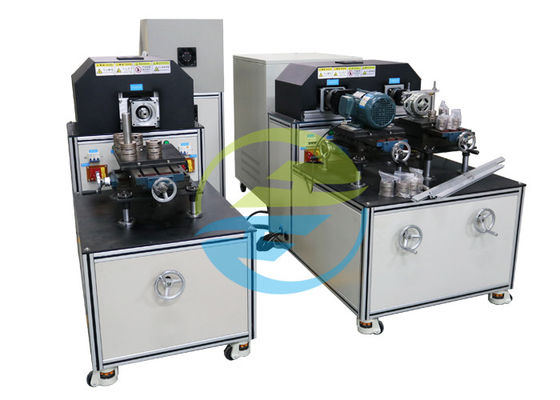

| Test benches | The system is equipped with two test benches with three test stations. Each test station has a motor clamping table. The position of the test motor can be adjusted in three axes. |
| AC power source | Standard power source for safety testing. |
