| Product Name: | Rigid Test Probe | Standard: | IEC60884, IEC60598, IEC60335 And Etc. |
|---|---|---|---|
| Warranty: | 1 Year | Finger Length: | 80mm |
| Finger Diameter: | 12mm | Baffle Plate Diameter: | 50mm |
| Baffle Plate Thickness: | 5mm | Material: | Nylon+stainless Steel |
| High Light: | IEC 60598 Test Finger Probe,12mm Test Finger Probe |
||
IEC60598 Test Finger Probe Rigid Test Probe length 80mm* Ф12mm
Standard description (IEC60598):
4.13.3
A straight unjointed test finger is used, with the same dimensions as the standard test finger specified in IEC 60529. The finger is pressed against the surface with a force of 30 N.
During the test, metal parts shall not touch live parts.
After the test, covers shall not be excessively deformed and the luminaire shall continue to meet the requirements of Section 11.
Standard:
This rigid finger probe conforms to the standard requirement of IEC61032 figure 7 device 11,IEC60884,IEC60598,IEC60335,IEC60065.
Application:
It is used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strengthen of openings in the enclosure or internal barriers.
Test sample:
Electrical outlet or similar electrical appliances and other hazardous live parts.
Feature:
It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .There are two kinds of shell that can be chosen: the nylon shell(for anti-electric shock test) and stainless steel shell(for strength test).
Parameters:
| Parameters /Model | HT-I07 | HT-I07T1 | HT-I07T2 |
| Name | Rigid Finger Probe | Rigid Finger Probe with 50N force | Rigid Finger Probe with 75N force |
| 1 | 20 0 -0.05 | 20 0 -0.05 | 20 0 -0.05 |
| 2 | 80±0.2 | 80±0.2 | 80±0.2 |
| 3 | R2±0.05 | R2±0.05 | R2±0.05 |
| 4 | S4±0.05 | S4±0.05 | S4±0.05 |
| 5 | 37o 0 -10’ | 37o 0 -10’ | 37o 0 -10’ |
| 6 | 14 o 0 -10’ | 14 o 0 -10’ | 14 o 0 -10’ |
| 7 | Ф12 0 -0.05 | Ф12 0 -0.05 | Ф12 0 -0.05 |
| 8 | Ф50 | Ф50 | ---- |
| 9 | 5±0.5 | 5±0.5 | ---- |
| 10 | ---- | With force of 0-50N | With force of 0-75N |

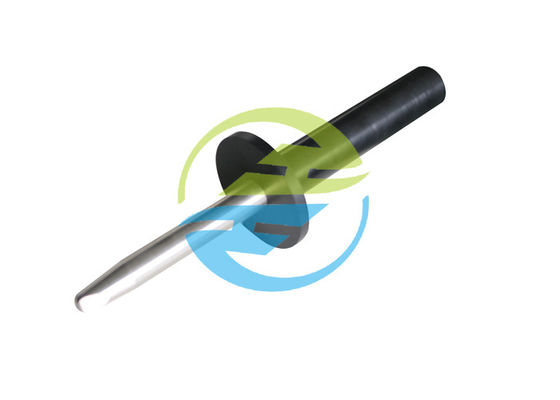

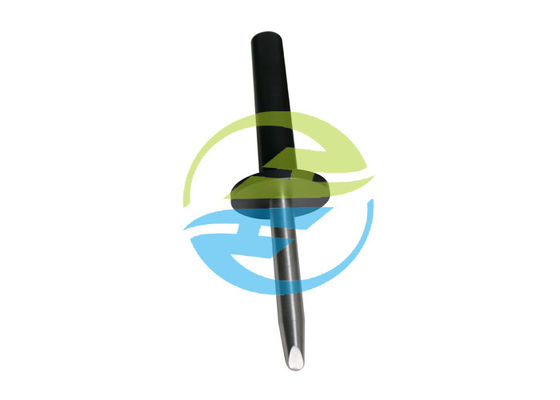

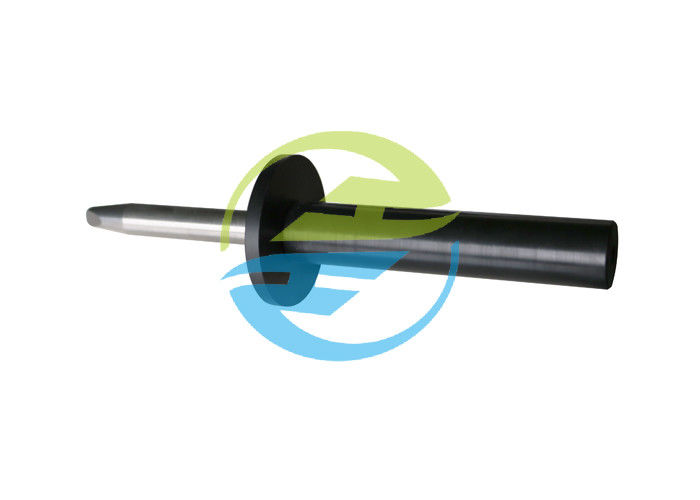

Picture for reference:
