GBT 4288 Appliance Performance Test Lab For Clothes Washing Machines

GBT 4288 Appliance Performance Test Lab For Clothes Washing Machines

  • GBT 4288 Appliance Performance Test Lab For Clothes Washing Machines
  • GBT 4288 Appliance Performance Test Lab For Clothes Washing Machines
GBT 4288 Appliance Performance Test Lab For Clothes Washing Machines
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate (cost additional)
Model Number: HCWMEF01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 1 set /month
Contact Now
Detailed Product Description
Product Name: Test Equipment Used For Measuring Performance For Clothes Washing Machines Standard: IEC 60456, GBT 4288
Application: Clothes Washing Machines Performance Test Usage: Measuring Energy Efficiency
Test Chamber Tem.: 23±2℃ Water Supply Pressure: 0.24±0.02 MPa
Test Stations: 12 Stations Water Supply Tem.: 10℃-70℃±2℃
High Light:

GBT 4288 Appliance Performance Test Lab

,

IEC 60456 Appliance Performance Test Lab

Energy Efficiency Test System Measuring The Performance For Clothes Washing Machines



Standard:

IEC 60456 Clothes washing machines for household use - Methods for measuring the performance;

GBT 4288 Household and similar electrical washing machine.



Application:

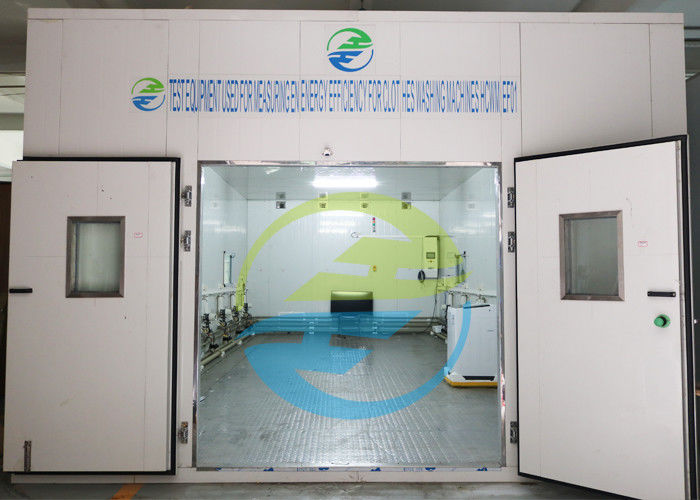

It is mainly used for washing machines performance test. The whole system is consisted of three parts: water supply system, test chamber, and control system. Appliance Performance Test Lab



Feature:

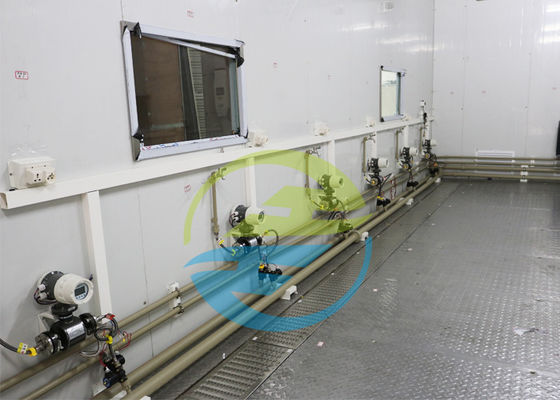

The equipment provides constant temperature and constant pressure water source for the test, and timely records the relevant parameters of the test process, calculates and generates test reports. The water supply device has multi water tanks, tap water is purified and input into hard water preparation tank, the hardness of the water is adjusted in a hard water preparation tank and then added to the water supply tank. In the water supply tank through heating, cooling (cooling using water-cooled chiller, coupled with cooling tower) to achieve the test temperature, water can be alternately supplied, pumped into the water supply pipeline through the pump, and then divided into two test ways in the test room for each test stations.



Main Function:

NO. Item Inspection Content and Requirements
1 Environmental Control 6.1.1 In addition to the test specified in the test environment, the type test should be at a temperature of (23 + 2), with a relative humidity of (60~70) %, no outside air, no strong sunlight and other thermal radiation.
2 Water Temperature Control

6.1.4 The water temperature of the water inlet of the washing machine with heating device is (15±2) °C;

6.1.5 The water temperature of the inlet of the drum washing machine without heating device is (50±2) °C;

6.1.6 The water temperature of the inlet of the pulsatory / stirring washing machine without heating device is (30±2) °C;

6.1.8 Woo washing process without heating device drum washing machine washing water temperature (40 ± 2) ° C;

3 Electricity Consumption Calculation 5.13 Electricity consumption: Washing machine for washing performance test. The unit washing capacity should be no more than the specified value in Table 4;
6.3.1 The washing test measures the electricity consumption at the same time, and the electricity consumption is calculated according to formula (1) E=E1/m.
4 Water Consumption Calculation 5.14 Water consumption: washing machine washing performance test the whole process of unit washing capacity water consumption should not be greater than the specified value of table 5.;
The washing test measures the amount of water at the same time, and the water consumption is calculated as W=W1/m according to the formula (3).
5 Water Supply Pressure Control 6.1.7 The pressure from the inlet of the full-motion washing machine is (0.24±0.02) °C.
6 Ground Safety Inspection Connect and disconnect the ground wire and check whether the sample is electrified or not working properly.



GBT 4288 Appliance Performance Test Lab For Clothes Washing Machines 0
