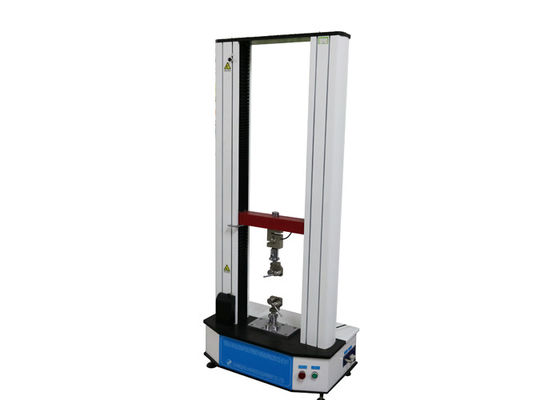

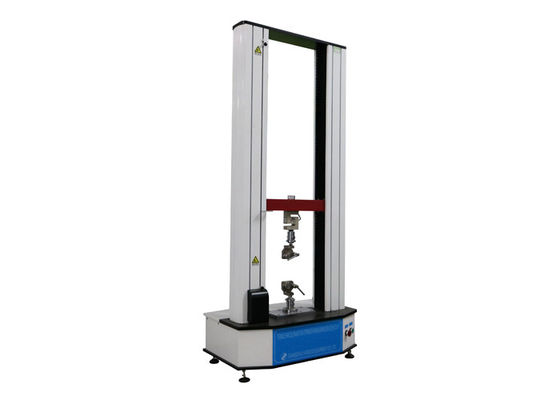

2T Cable Testing Equipment Tensile And Elongation Strength Measuring Device 390mm

2T Cable Testing Equipment Tensile And Elongation Strength Measuring Device 390mm

2T Cable Testing Equipment Tensile And Elongation Strength Measuring Device 390mm
2T Cable Testing Equipment Tensile And Elongation Strength Measuring Device 390mm
2T Cable Testing Equipment Tensile And Elongation Strength Measuring Device 390mm
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HC1017
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 set per month
Contact Now
Detailed Product Description
Product Name: Tensile And Elongation Strength Measuring Device Warranty: 1 Year
Application: Tensile, Peeling, Tearing And Other Tests Capacity: 2T
Precision Grade: Level 0.1 The Maximum Load Of The Beam: 20KN
The Effective Test Width: 390mm The Station Itinerary: 1000mm
The Speed Of Test: 10~500mm/min Motor: 2KW
High Light:

2T Cable Testing Equipment

,

500mm/min Cable Testing Equipment

,

390mm Elongation Strength Measuring Device

2T Cable Testing Equipment Tensile And Elongation Strength Measuring Device 390mm



Application: this device is suitable for all kinds of food packaging, textile, rubber, plastic, synthetic leather, tape, electronics, metal and other industries, such as materials and products to do tensile, peeling, tearing and other tests to determine the quality of the product. The machine adopts electromechanical integration design, mainly composed of force sensor, transmitter, microprocessor, load driving mechanism and computer. The precision is high and the operation is simple.

Parameters:

1.Capacity 2000KG
2.Precision grade level 0.1
3.The maximum load of the beam 20KN
4.The effective measurement range 0.02/100-100%
5. The resolution of the test force, the internal and external files, and the whole resolution unchanged.
6. The effective test width 390mm
7. The station itinerary 1000mm
8.The speed of test 10~500mm/min
9.Speed precision less than 0.1% of the indication value
10.The precision of displacement measurement less than 0.1% of the indication
11.The precision of deformation measurement within 0.1% of the indication value
12.Acquisition induction mode high precision sensor
13.Control system full digital AC servo controller
14.Tooling and fixture configuration total two sets, one set for rubber and plastic materials, the other set for electrical cables and wires
15.Software measurement and control system all digital closed loop control system, which can realize constant stress, constant strain, constant displacement and test function.
16.test bench lifting device computer numerical control
17.test bench safety protection device software automatic diagnosis, electronic limit
18.Test regression: manual can return to the initial position at the highest speed and automatically return automatically after the test.
19.Overload protection: the maximum load can be set, and automatic protection.
20.Host computer: special monitoring and control software, computer hardware using Lenovo brand business computer.
21.motor 2KW
22.The weight of the host about 145kg



Configuration:

Material: the machine cover, all aluminum profiles are opened without any solder joints, and the shell is smooth and smooth, durable.

Motor: servo motor + servo drive;

Transmission: T type ball screw rod + light rod linear bearing;

Displacement: servo drive integrated light speed encoder.

Accessory:

1 tool box suitable for stripping of cables.

A computer

Software

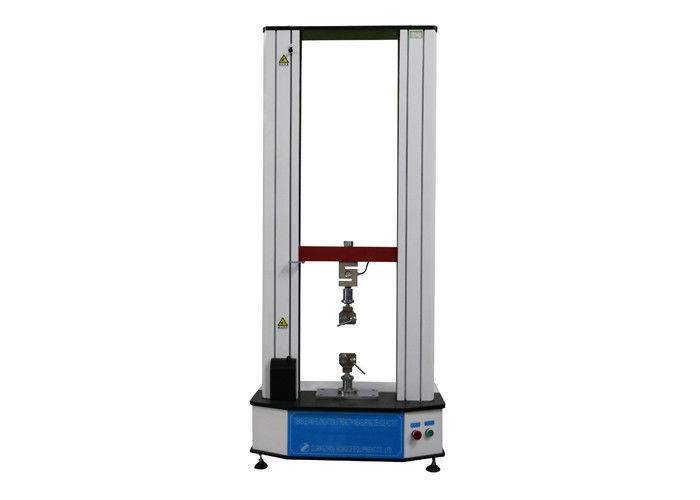

Picture for reference:
