IEC 60335-2-11 Washing Machine Door Performance Tester With 7 Inch Touch Screen

IEC 60335-2-11 Washing Machine Door Performance Tester With 7 Inch Touch Screen

IEC 60335-2-11 Washing Machine Door Performance Tester With 7 Inch Touch Screen
IEC 60335-2-11 Washing Machine Door Performance Tester With 7 Inch Touch Screen

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate (cost additional)
Model Number: HJ0636

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Product Name: Washing Machine Door Performance Tester Warranty: 1 Year
Application: Electrical Appliance Usage: Washing Machine Door
Operation Interface: 7-inch Color LCD Touch Screen Driving Mode: Servo Motor
Door Open /close Angle: 0-120°,can Be Preset Door Open /close speed: 0-360°/s, ≥1.5/s Can Be Preset

IEC 60335-2-11 Washing Machine Door Performance Tester With Touch Scteen



Standard description:



20.101 Appliances shall have means to prevent opening of the door during operation or an interlock which disconnects the motor before the door opening exceeds 75 mm. It shall not be possible to start the motor while the door opening exceeds 75 mm. For appliances with a door opening having a dimension exceeding 300 mm and a drum having a volume exceeding 100 dm³ , starting of the motor shall not be possible until a separate means which controls the movement of the drum is operated manually. However, for appliances loaded from the front, the dimension are reduced to 25 cm for the door opening and 75 dm³ for the drum volume.              Electrical Appliance Tester



Interlocks shall be constructed so that unexpected operation of the appliance is unlikely to occur while the door is open.



Compliance is checked by inspection, by measurement and by manual test with the appliance supplied at rated voltage and under normal operation .            Electrical Appliance Tester


If means to prevent the door opening incorporates a coil or similar component to lock the door in the closed position, the component is energized and de-energized 6 000 times, six times a minute or at the rate imposed by the construction of the appliance if this is lower.


The locking means and its components shall be fit for further use.


NOTE 1 The door is opened and closed during the test if this is necessary for the mechanical operation of the interlock.

NOTE 2 Interlocks which can be released by means of the test finger shown in figure 1 are considered likely cause unexpected operation of the appliance.



Product information:



The washing machine door performance tester is special designed and manufactured as per IEC 60335-2-7 household and similar electrical appliances – safety: part 2-7: particular requirements for washing machines, clause 18.101and clause 22.104; IEC 60335-2-11 household and similar electrical appliances – safety: part 2-11: particular requirements for tumble dryers, clause 20.101. It is a special equipment for durability and structural testing of washing machine.                                            Electrical Appliance Tester

The equipment adopts advanced PLC intelligent control system, touch screen humanized operation interface to make recording and display more accurate; with preset test times, on current detection, load voltage regulation and display, test speed, test stroke, open / close door pull force setting, pull force transient curve display, test data storage and query, fault alarm and other functions, can be analyzed by the data record whether the test sample is qualified or not. The whole machine is divided into tumble washing machine test station, wave-wheel washing machine test station, and beautiful appearance; stable performance and convenient operation. It is the first choice for large metrology institutions and laboratories.                      Electrical Appliance Tester



Parameters:

NO. Item Parameters
1 Power supply AC220V±10%/50-60Hz

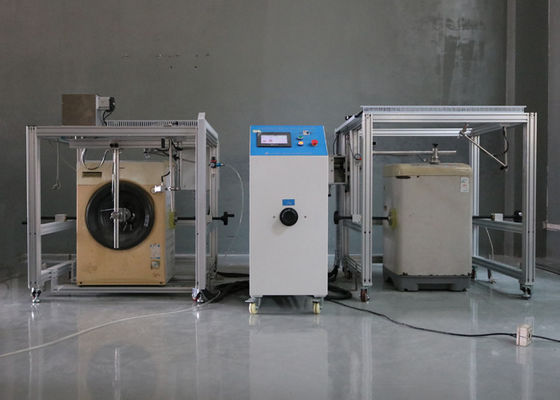

2 Test stations 2 stations, tumble washing machine test station, wave-wheel washing machine test station
3 Operation interface 7-inch color LCD touch screen
4 Driving mode Servo motor
5 Control system PLC programmable control
6 Test times 0~999999 times, can be preset and displayed
7 Door open /close angle 0-120°,can be preset
8 Door open /close speed 0-360°/s, ≥1.5/s can be preset
9 Test project

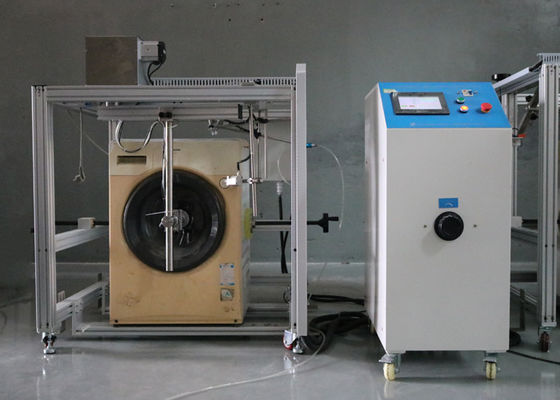

1. tumble washing machine door interlocks test

2. tumble washing machine door endurance test

3. tumble washing machine door structure test

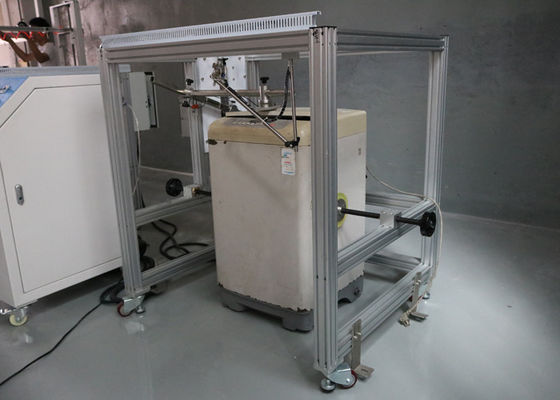

4. wave-wheel washing machine lid endurance test

5. wave-wheel washing machine water extraction open lid test

10 Test environment Atmospheric pressure 80 ~ 106kpa; ambient temperature 5 ~ 40 ° C; relative humidity (20 ~ 80)% RH; use place: no vigorous shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation




Picture view:


IEC 60335-2-11 Washing Machine Door Performance Tester With 7 Inch Touch Screen 0
