|Product Name:||Inclined Plane Device||Warranty:||1 Year|
|Standard:||IEC 60335-1||Material:||High-quality Spray Steel Plate|
|Color:||Gray||Function:||Test The Stability And Mechanical Hazards|

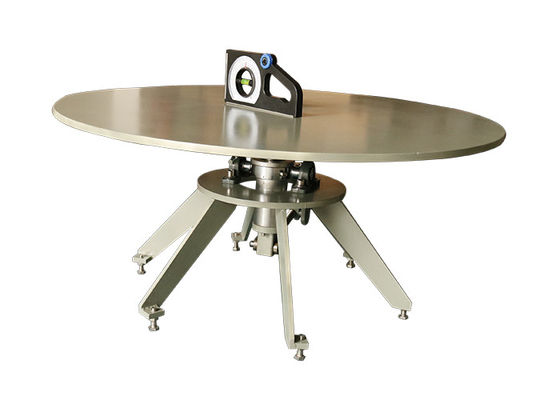

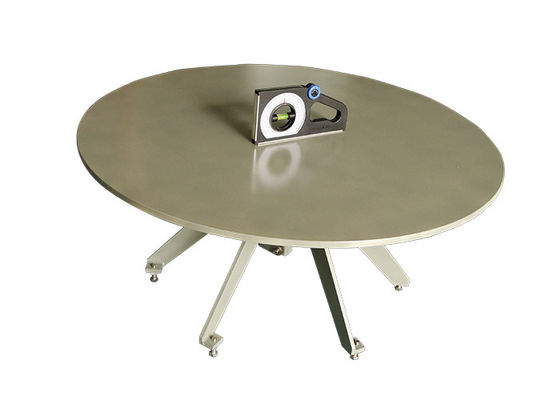

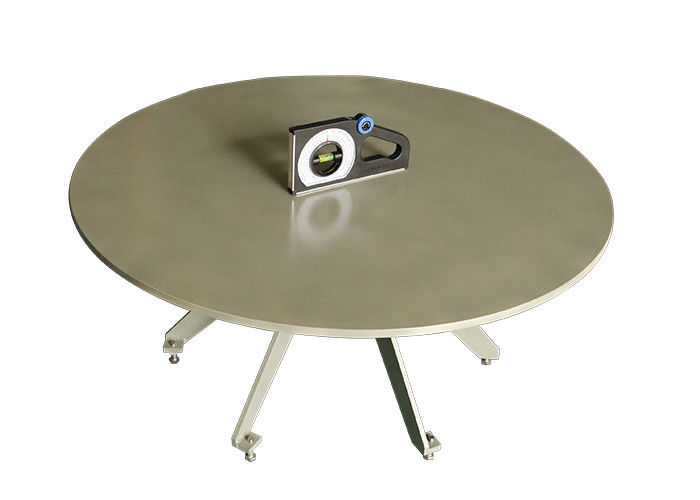

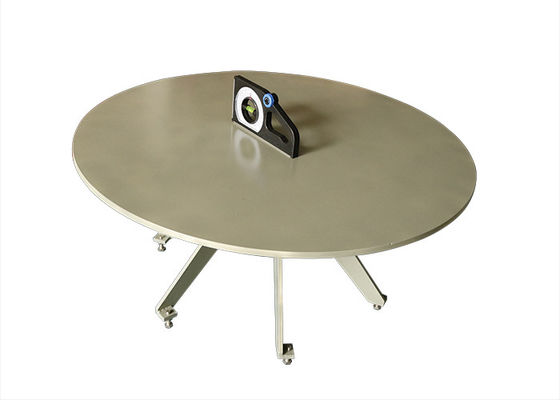

1000mm Inclined Plane Device,
IEC 60335-1 Electrical Appliance Tester
Product information: The inclined plane device is designed and manufactured according to IEC60335 standards of stability test methods,it is used to test the stability of household appliance and similar electrical devices. This device is with anti-vibration performance, large weight-bearing, and adjustable wide angle, it is easy to operate. Our company has designed a variety of standard models of stability test platform to meet customer needs according to a wide range of household electrical appliances, products of different sizes of the actual situation.
Standard: Clause 20.1 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements.
Standard description: (IEC 60335-1 Clause 20.1)
20 Stability and mechanical hazards
20.1 Appliances, other than fixed appliances and hand-held appliances, intended to be used on a surface such as the floor or a table shall have adequate stability.
Compliance is checked by the following test, appliances incorporating an appliance inlet being fitted with an appropriate connector and flexible cord.
The appliance is placed in any normal position of use on a plane inclined at an angle of 10° to the horizontal, the supply cord resting on the inclined plane in the most unfavourable position. However, if part of an appliance comes into contact with the horizontal supporting surface when the appliance is tilted through an angle of 10°, the appliance is placed on a horizontal support and tilted in the most unfavourable direction through an angle of 10°. Electrical Appliance Tester
NOTE 1 The appliance is not connected to the supply mains.
NOTE 2 The test on the horizontal support may be necessary for appliances provided with rollers, castors or feet.
NOTE 3 Castors or wheels are blocked to prevent the appliance from rolling.
Appliances provided with doors are tested with the doors open or closed, whichever is the more unfavourable.
Appliances intended to be filled with liquid by the user in normal use are tested empty or filled with the most unfavourable quantity of water up to the capacity indicated in the instructions.
The appliance shall not overturn. Electrical Appliance Tester
The test is repeated on appliances with heating elements with the angle of inclination increased to 15°. If the appliance overturns in one or more positions, it is subjected to the tests of clause 11 in each of these overturned positions.
During this test, temperature rises shall not exceed the values shown in table 9.
Application: It is used to test the stability of an apparatus that requires a surface in order to work.
Test sample: Household appliances, such as refrigerators, washing machines, air conditioners, other household appliances and similar electrical appliances and etc.
Feature: The device consists of a surface and an angle adjusting device. Test sample is placed on the surface, then check the test sample’s mechanical stability by Inclining the surface at an angle. Manual operation version and electrical motor drive version are optional; the electrical motor drive version can achieve 1r/min rotating rate. Electrical Appliance Tester
|Load Capacity||Rotation Method||Rotation Speed||Remark|
|HJ0603||600mm||High-quality spray steel plate||0-30°||50kg||Manual||-/1r/min||Round table|
|HJ0603A/Z||800mm||High-quality spray steel plate||0-30°||80kg||
|HJ0603B/Z||1000mm||High-quality spray steel plate||0-30°||120kg||
|HJ0603C||800*800mm||Aluminum plate||0-15°||80kg||Manual||-||Rectangle table|
|Z represents the version with automatic rotation function driven by the electrical motor|
