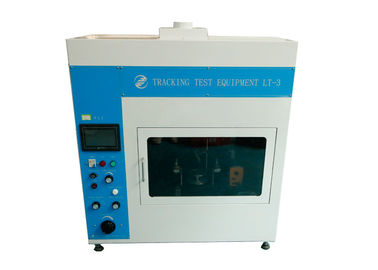

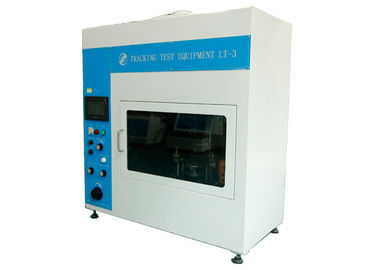

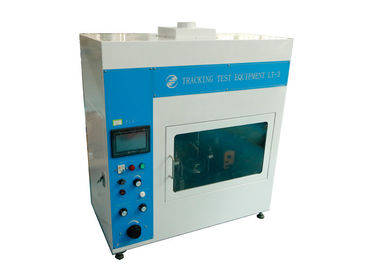

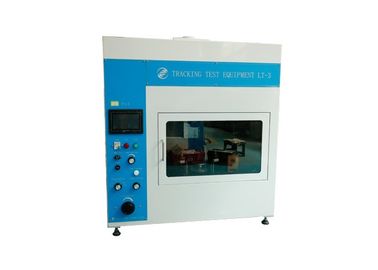

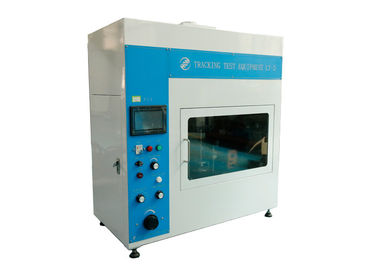

9999X0.1S Resolution Leakage Tracking Tester IEC 60112 Solid Insulating Materials IEC 60695

9999X0.1S Resolution Leakage Tracking Tester IEC 60112 Solid Insulating Materials IEC 60695

    • 9999X0.1S Resolution Leakage Tracking Tester IEC 60112 Solid Insulating Materials  IEC 60695
    • 9999X0.1S Resolution Leakage Tracking Tester IEC 60112 Solid Insulating Materials  IEC 60695
    • 9999X0.1S Resolution Leakage Tracking Tester IEC 60112 Solid Insulating Materials  IEC 60695
    • 9999X0.1S Resolution Leakage Tracking Tester IEC 60112 Solid Insulating Materials  IEC 60695
    • 9999X0.1S Resolution Leakage Tracking Tester IEC 60112 Solid Insulating Materials  IEC 60695
  • 9999X0.1S Resolution Leakage Tracking Tester IEC 60112 Solid Insulating Materials  IEC 60695

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Calibration certificate(cost additional)
    Model Number: LT-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Plywood
    Delivery Time: 20 days
    Payment Terms: L/C, T/T
    Supply Ability: 30 set per month
    Contact Now
    Detailed Product Description
    TIMING DEVICE: 9999X0.1S Resolution DRIP INTERVAL: Adjustable
    ENVIRONMENTAL REQUIREMENTS: 0 ~ 40 ℃ / ≤ 80% Relative Humidity ELECTRODE MATERIAL: Platinum
    THE HEIGHT OF THE DRIP: 30~40mm Conforms To Standard: IEC 60112, IEC60695 And Etc
    High Light:

    flammability chamber

    ,

    flammability tester

    IEC 60112 solid insulating materials, IEC 60695 leakage tracking tester



    Standard:



    IEC 60112, IEC60695 and etc



    product introduction



    The test machine is designed and manufactured according to the requirements of the relevant standards, such as IEC60695. It is used for determination of the relative resistance to tracking performance that solid electrical insulating material under the action of an electric field, when the surface exposed to water containing impurities.

    If electrical products affected by moisture and impurities environmental, leakage may be caused on the insulation between different polarity live parts or live parts and grounded metal, the generated arc will cause short circuit or electrical erosion due to discharge, even cause fire. The tracking test is a destructive test to insulating material simulating the above situation, to measure and assess the relative resistance to tracking when the insulator is in the effect of electric and impurities in water-containing.

    This equipment adopts advanced PLC control system, touch-screen humanized button operating device, high quality materials and professional technology, which make itself has excellent quality, stable and durable performance and beautiful appearance. In addition, automatic drip timing device, accurate electrode pressure sensor display, simple operation and high accuracy improve the efficiency of the test and make our equipment takes a leading position in similar products.



    Function Overview of Control System



    IEC 60112 Proof and Comparative Tracking Test Equipment for Solid Insulating Materials Platinum Electrode 4±0.1mm



    Parameters:



    Timing device 9999X0.1S Resolution   Drip interval Adjustable
    Electrode material Platinum The height of the drip 30~40mm
    Electrode specifications 5mm*2mm Drip delay 0.2S (solenoid valve open time)
    Electrode spacing 4±0.1mm Drip size 45 ~ 50 drops / cm3
    Electrode pressure 1±0.05 N Delay electric circuit 2 ± 0.1S (at 0.5A)
    Electrode angle 60° Test voltage range

    0~600V

    Accuracy:1.5%

    Short circuit voltage drop 8% MAX Electrical parameters 1.5KW/220VAC/50Hz
    Short-circuit current 1±0.1A Accuracy: 1% Working volume > 0.5 M³
    Environmental requirements 0 ~ 40 ℃ / ≤ 80% relative humidity
    Standards IEC60112, UL746A, IEC60695, ASTMD3638.
