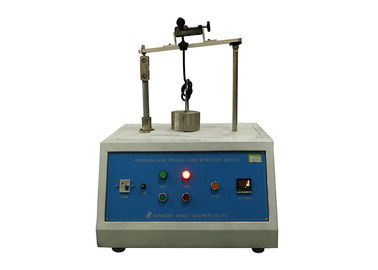

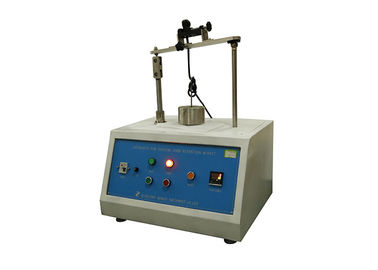

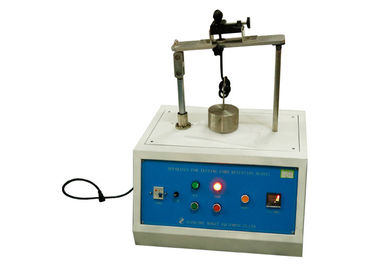

50Hz Plug Socket Tester For Cord Retention For Flexible Cables Of IEC60884-1 Figure 20 Single Station

50Hz Plug Socket Tester For Cord Retention For Flexible Cables Of IEC60884-1 Figure 20 Single Station

  • 50Hz Plug Socket Tester For Cord Retention For Flexible Cables Of IEC60884-1 Figure 20 Single Station
  • 50Hz Plug Socket Tester For Cord Retention For Flexible Cables Of IEC60884-1 Figure 20 Single Station
  • 50Hz Plug Socket Tester For Cord Retention For Flexible Cables Of IEC60884-1 Figure 20 Single Station
50Hz Plug Socket Tester For Cord Retention For Flexible Cables Of IEC60884-1 Figure 20 Single Station
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HC9917
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 30 set per month
Contact Now
Detailed Product Description
Test Station: 1 Station Test Weight: 10N*1, 60N*1, 20N*2
Test Rate: 60 Times /min Working Stroke: 35mm
High Light:

socket tester

,

electrical plug tester

Apparatus For Testing Cord Retention For Flexible Cables Of IEC60884-1 Figure 20 Single Station



Standard:

IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 23.2, figure 20



Application:

It is for testing rewirable plugs and rewirable portable socket-outlets shall be provided with a cord anchorage such that the conductors are relieved from strain, including twisting, where they are connected to the terminals and that their covering is protected from abrasion. The machine conducts automatically after the test started, it will stop working after reaching the setting number of times.



Test sample:

Non-rewirable plug and socket-outlet, rewirable plug and socket-outlet.



Parameters:

Power supply AC 220V 50Hz
Weights 10N*1, 60N*1, 20N*2
Rate of testing 60 times / min
Test times 0-9999, preset. Default 100 times.
Cord bushes 5 pieces (Φ6mm,Φ8mm, Φ10mm, Φ12mm, Φ16mm)
Working stroke 35mm



The pull force to the flexible cable:

The rated current of the flexible cable(A) The rated voltage of the flexible cable(V) The tensile force
2.5 50
2.5~16 <250 60
2.5~16 >250 80
>16 100



Table for the entrance hole of the cords



Rated current of plug or portable socket-outlet Number of poles Permissible diameter for the entrance hole of cords
2.5 6
10

2

3

4

5

5

6

8

9

8

10

11

12

16

2

3

4

5

5

6

8

9

10

12

13

14

25

2

3

4

5

12

13

14

15

20.5

21

22

24
