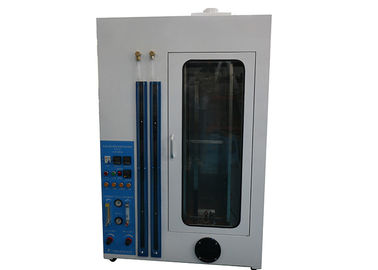

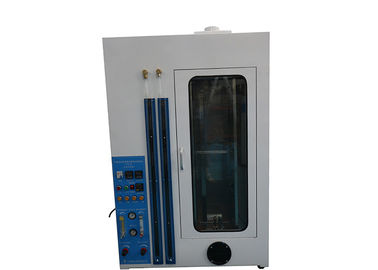

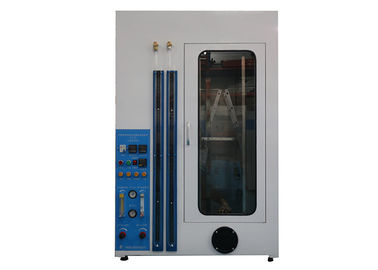

IEC60332 Flammability Testing Equipment , Single Cable Vertical Burning 1 M³Electrical Control Test Chamber 1000w

IEC60332 Flammability Testing Equipment , Single Cable Vertical Burning 1 M³Electrical Control Test Chamber 1000w

    • IEC60332 Flammability Testing Equipment , Single Cable Vertical Burning 1 M³Electrical Control Test Chamber 1000w
    • IEC60332 Flammability Testing Equipment , Single Cable Vertical Burning 1 M³Electrical Control Test Chamber 1000w
    • IEC60332 Flammability Testing Equipment , Single Cable Vertical Burning 1 M³Electrical Control Test Chamber 1000w
    • IEC60332 Flammability Testing Equipment , Single Cable Vertical Burning 1 M³Electrical Control Test Chamber 1000w
  • IEC60332 Flammability Testing Equipment , Single Cable Vertical Burning 1 M³Electrical Control Test Chamber 1000w

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: calibration certificate (cost additional)
    Model Number: VF-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiatable
    Packaging Details: plywood
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 10 set /month
    Contact Now
    Detailed Product Description
    Standard: IEC60332-1-1,-2,-3 ,,IEC 60332-2-2 Control Operation: Electrical Control
    Operation: Button Operation Blast Burner Standard: IEC60695-11-2 Annex A
    Burning Angle: Tilt 45°±2°,Adjustable Combustion Chamber: 1 M³

    IEC60332 Single Cable Vertical Burning 1 M³Electrical Control Test Chamber 1000W

    Standard: IEC60332-1-1:2004,IEC60332-1-2:2004,IEC60332-1-3:2004,IEC 60332-2-2 and etc.

    Application:Suitable for vertical burning test of single cable or optical cable products, determine the combustion characteristics of insulating materials.

    Test sample:Single cable or optical cable products.

    Feature:Using integral intake automatic ignition system, combustion time delay only 0.1s to ensure that the full combustion of the gas.

    Parameters:

    Working voltage 220V/50Hz
    Control operation mode Electrical control, button operation
    Blast burner standard IEC60695-11-2 Annex A,Burner opening:Φ7±0.05mm,made of brass
    Gas flow and gas category Mixture gas:650±30mL/min propane;10±0.5L/min air,Dual flow meter adjustment
    Burning time 9999X0.1S
    Burning angle Tilt 45°±2°,Adjustable
    Test flame calibration Temperature measuring copper head:1000W:Ф9mm±0.01mm,weight before drilling:10 ± 0 .05g
    Thermocouple: The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple,temperature resistance 1100°
    Distance between the bunsen burner port to temperature measuring copper block:95 mm
    Flame height:Inner flame:55±5mm,Outer flame:180±10mm
    Temperature rise time from 100±5°C to 700°±3°C 45±5s
    Metallic screen size H1200mm*W300mm*D450mm
    Combustion chamber 1 m³
    Gas >95% propane or coal gas
    Test sample Length:600±25㎜,distance from the bottom:50mm
    Fixed horizontal support of the sample 2, distance:550mm



    IEC60332 Flammability Testing Equipment , Single Cable Vertical Burning 1 M³Electrical Control Test Chamber 1000w



    IEC60332 Flammability Testing Equipment , Single Cable Vertical Burning 1 M³Electrical Control Test Chamber 1000w

    IEC60332 Flammability Testing Equipment , Single Cable Vertical Burning 1 M³Electrical Control Test Chamber 1000w
