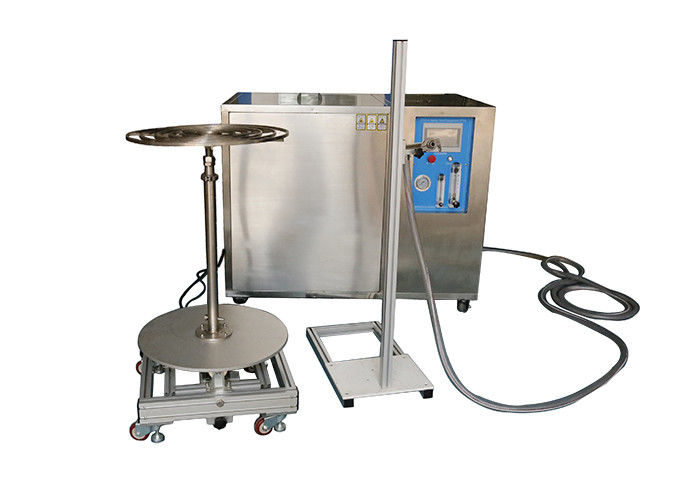

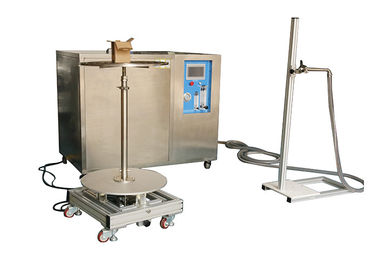

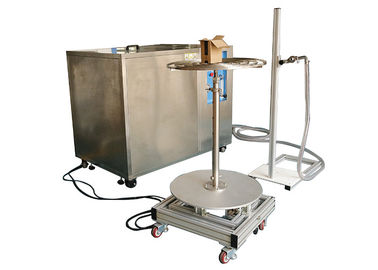

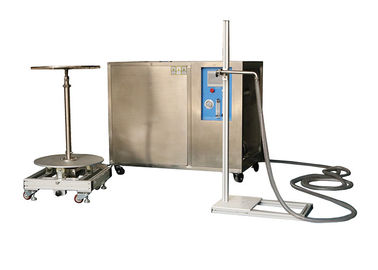

IPX6 Strong Spray Test Machine PLC Control Stainless Steel 12.5mm Waterproof Tester

IPX6 Strong Spray Test Machine PLC Control Stainless Steel 12.5mm Waterproof Tester

    • IPX6 Strong Spray Test Machine PLC Control Stainless Steel 12.5mm Waterproof Tester
    • IPX6 Strong Spray Test Machine PLC Control Stainless Steel 12.5mm Waterproof Tester
    • IPX6 Strong Spray Test Machine PLC Control Stainless Steel 12.5mm Waterproof Tester
    • IPX6 Strong Spray Test Machine PLC Control Stainless Steel 12.5mm Waterproof Tester
  • IPX6 Strong Spray Test Machine PLC Control Stainless Steel 12.5mm Waterproof Tester

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Calibration Certificate (Cost Additional)
    Model Number: IPX6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Packaging Details: Plywood
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 10 set /month
    Contact Now
    Detailed Product Description
    Control: PLC Spray Nozzle: 12.5mm
    Water Jet Pressure: 100~150kpa Sample Turntable: Ø600mm
    IPX6 Spray Flow: 100L/min±5% Sample Turntable Rotation Speed: 1~5r/min (adjustable)

    IEC60529 IPX6 Strong Spray Machine PLC Control Stainless Steel 12.5mm Waterproof Tester

    Product Introduction

    The spray test system is designed and manufactured according to the standard IEC60529<<Degrees of protection provided by enclosures (IP Code)>>, used to test waterproof performance of the electrical products which second characteristic is numeral 6.

    This machine is suitable for enclosure protection rating evaluation of electrical appliances and electronic equipment, against the harmful effects due to water entering the housing of the device.



    Specifications for sample turntable:

    1. Turntable Material: SUS304 stainless steel, diameter ф600mm. Turntable height is adjustable, adjustable range: 600-900mm.
    2. Maximum load: 50KG.
    3. Turntable rotation speed: 1-5 r / min adjustable.
    4. Turntable electrical part is fully sealed to prevent water leakage. Can equip with a waterproof universal socket.
    5. Turntable adopts to domestic high-speed motors, adjustable speed within the standard range. Containing a reducer (reduction ratio 1: 300)
    6. Turntable can rotate clockwise or counterclockwise
    7. There are four activities with brake casters beneath the turntable, easy for moving and stationary



    Technical parameters:



    Model IPX6A
    IPX6 Spray aperture (mm) Ø12.5mm
    IPX6 Spray Flow 100L/min±5%
    IPX6 Flowmeter 10-110L/min one piece
    The distance of IPX6 nozzle mouth to test products 2.5m-3m
    Water jet pressure 100~150kpa(Adjust by water flow )
    Timer 1-9999Min
    Sample turntable Ø600mm,
    Sample turntable rotation speed 1~5r/min (adjustable)
    Sample turntable material SUS304# stainless steel
    Reservoir (L) 500L
    Reservoir material SUS304# stainless steel
    Breaker No fuse breaker
    Protective Leakage, No water , short-circuit



    Preparation Before Test

    Close the main power switch, the system is powered, and the power indicator is on.

    1.Installation of Turntable

    Connect the turntable connecting line to the turntable interface on the equipment.

    2.Installation of Spray Nozzles

    Install the nozzle on the bracket. And the distance from the sample on the turntable to keep the distance of 2.5-3 meters

    3.Installation of the water inlet pipe and water outlet pipe

    Connect the inlet pipe to the inlet port, and the rest is connected to each outlet according to function.



    Safety Warning

    1. This equipment is powered by high voltage and must be protected against electric shock during use. The operator must strictly abide by the operating procedures and the metal casing that the equipment enclosure and personnel touch must be well grounded.

    2. If you hear an abnormal sound during operation, please stop the machine and check it again before restarting it, so as not to affect the service life of the equipment.

    3. After the equipment is positioned, the support frame should be propped up to prevent the casters from being shaken after the equipment is tested.

    4. The equipment runs for a long time. If the water spray hole is found to be blocked, the pipeline must be removed, rinsed with tap water and then assembled.

    5. Clean water tank regularly to keep it clean.

    IPX6 Strong Spray Test Machine PLC Control Stainless Steel 12.5mm Waterproof Tester

    How to operate this equipment ?Click here user manual IPX6.pdf to get the operation method.
