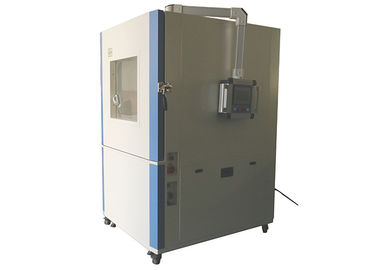

IPX5X IPX6X 1000L Sand And Dust Test Chamber PLC Control Figure 2

IPX5X IPX6X 1000L Sand And Dust Test Chamber PLC Control Figure 2

    • IPX5X IPX6X 1000L Sand And Dust Test Chamber PLC Control Figure 2
    • IPX5X IPX6X 1000L Sand And Dust Test Chamber PLC Control Figure 2
    • IPX5X IPX6X 1000L Sand And Dust Test Chamber PLC Control Figure 2
    • IPX5X IPX6X 1000L Sand And Dust Test Chamber PLC Control Figure 2
  • IPX5X IPX6X 1000L Sand And Dust Test Chamber PLC Control Figure 2

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Calibration Certificate (Cost Additional)
    Model Number: HH0810

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiatable
    Packaging Details: plywood
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 10 set /month
    Contact Now
    Detailed Product Description
    Working Size: 1000L Can Be Customized Control: PLC
    Test Sand (or Talc) Dosage: 2kg/m³ Test Dust: Dry Talc
    Sand And Dust Concentration: 2~4kg/m3 Air Flow Speed: ≤2m/s

    IEC60529 IPX5X IPX6X Sand And Dust 1000L PLC Control Test Chamber Figure 2



    Product Introduction

    The sand and dust test chamber is designed and manufactured according to IEC60529-2001 < Degrees of protection provided by enclosure (IP code)> Fig 2, IEC60598-1-2008 and etc. It artificially simulates the dust environment to test the dust-proof ability of the test samples.

    The test device is suitable for electrical products’ sand and dust test of first characteristic numeral 5 and 6 (IPX5 and IPX6). It is used to test sealing parts and enclosure’s sand and dust resistance capacity of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.

    The chamber can provide a non-laminar flow of dust-loaded vertically circulating air, can be timed controlled; also be equipped with a vacuum pump which can vacuum the test sample, the exhaust volume and pressure can be adjusted; in addition, the inside chamber is configured with a airflow temperature control device, to ensure that the test is under standard environmental conditions.

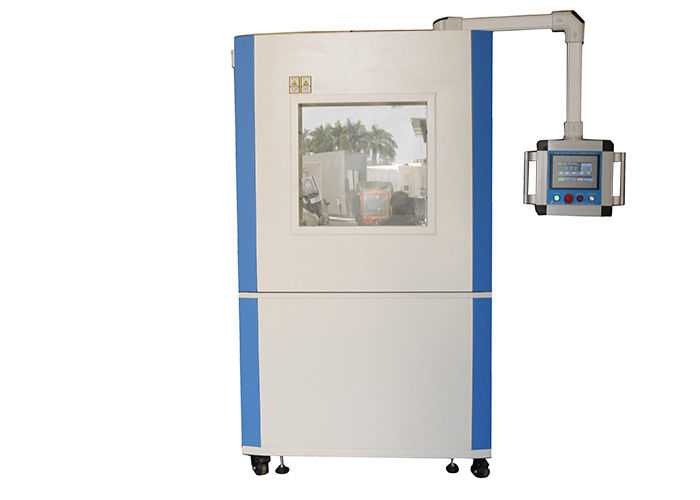

    The test equipment uses intelligent and humanized PLC control system, the inner of the test equipment is made of high quality SUS304 stainless steel, the enclosure is A3 plate electrostatic spraying. And it is also having large observation window and manual wiper device. The security protection is good.



    Function parameters:

    Model HH0810
    Working size(mm) W1000*D1000*H1000
    Outer size (mm) L1850*W1350*H1800
    Main technical parameters Temperature range Room temperature
    Test dust dry talc which can go through the sieve of 75μm and the square sieve of wire diameter 50μm.
    Test sand (or talc) dosage

    2kg/m³



    Vacuum pump Ultimate vacuum:2Pa
    Air pressure meter 0~-1.0Mpa
    Sample rack height adjustment range

    0~750MM



    Timing range



    0~99 hours 59 min

    Timing accuracy



    ±1min

    Load cycle control



    0~99 hours 59 min

    Ash blowing cycle control



    1s~9999 min
    Sand and dust concentration 2~4kg/m3
    Air flow speed ≤2m/s



    Operation Instructions

    The structure and working principle of the sand and dust test chamber is the same as the requirements of IEC60529-2001. It is with an addition of flow heating device, in order to work under low ambient temperature and heavy humidity conditions. Firstly, put the standard dry talc ( 2kg / m³ ) into the test chamber, then put the sample into the test chamber, after that, start the fan, to achieve a high density dust cloud in the test chamber, until reach to the set running time (generally 8h).

    Please click here user manual HH0810.pdf to get the user manual .

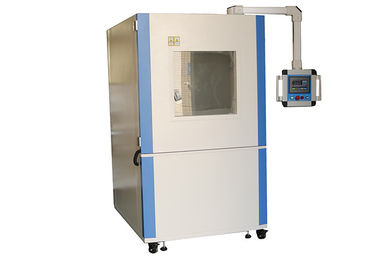

    IPX5X IPX6X 1000L Sand And Dust Test Chamber PLC Control Figure 2

    IPX5X IPX6X 1000L Sand And Dust Test Chamber PLC Control Figure 2
