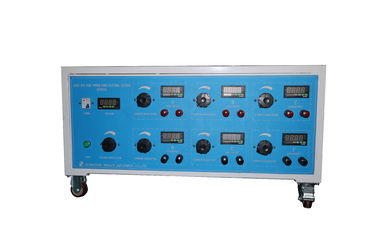

0 ~ 280V Load Box For Power Cord Flexing Tester Six Stations Ammeter Accuracy ±1%

0 ~ 280V Load Box For Power Cord Flexing Tester Six Stations Ammeter Accuracy ±1%

    • 0 ~ 280V Load Box For Power Cord Flexing Tester Six Stations Ammeter Accuracy ±1%
  • 0 ~ 280V Load Box For Power Cord Flexing Tester Six Stations Ammeter Accuracy ±1%

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Calibration certificate(cost additional)
    Model Number: HC9920

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Plywood
    Delivery Time: 30 days
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Output Current: 0 ~ 40A Is Arbitrary Adjustable Output Voltage: 0 ~ 280V
    Test Station: Six Stations Ammeter Accuracy: ±1%

    Load Box For Power Cord Flexing Tester Six Stations



    Product Introduction

    This device is designed and manufactured according to the relevant technical requirements of IEC, UL and etc. It is used to supply test current for power lines, cables and electrical materials which required test current are under 40A. The device has six output current loop, the voltage is adjustable between loops. The test machine uses imported instruments, has rational layout and beautiful appearance, the operation of the device is convenient.

    Note: this test equipment should work with together with our power cord flexing test apparatus HC9919.



    Technical Parameters





    Input voltage AC220V±5%, 60Hz
    Output current 0 ~ 40A is arbitrary adjustable
    Output voltage 0 ~ 280V
    Test station Six stations
    Ammeter Accuracy ±1%
    Connecting wire 7PIN Aviation wire
    Environment temperature -10℃~50℃
