IEC60255-5 Electrical Appliance Tester High Voltage Impulse Generator Output Voltage Waveform Peak From 500V To 15 kV

IEC60255-5 Electrical Appliance Tester High Voltage Impulse Generator Output Voltage Waveform Peak From 500V To 15 kV

    • IEC60255-5 Electrical Appliance Tester High Voltage Impulse Generator Output Voltage Waveform Peak From 500V To 15 kV
    • IEC60255-5 Electrical Appliance Tester High Voltage Impulse Generator Output Voltage Waveform Peak From 500V To 15 kV
    • IEC60255-5 Electrical Appliance Tester High Voltage Impulse Generator Output Voltage Waveform Peak From 500V To 15 kV
    • IEC60255-5 Electrical Appliance Tester High Voltage Impulse Generator Output Voltage Waveform Peak From 500V To 15 kV
  • IEC60255-5 Electrical Appliance Tester High Voltage Impulse Generator Output Voltage Waveform Peak From 500V To 15 kV

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Calibration certificate(cost additional)
    Model Number: HJ0602A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Carton box
    Delivery Time: 30 days
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Test Pulse Output Waveform: Voltage Wave: 1.2/50 μs Output Voltage Waveform Peak: 500V~15 KV
    Output Polarity: Positive Or Negative (can Automatically Alternate Polarity) Surge Output Mode: Manual Or Automatic
    Leakage Current Alarm Range: 0.3A-1A Adjustable

    IEC60255-5 High Voltage Impulse Generator





    Application

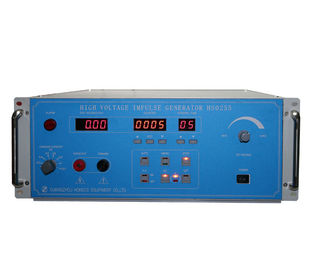

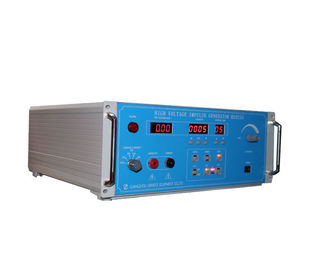

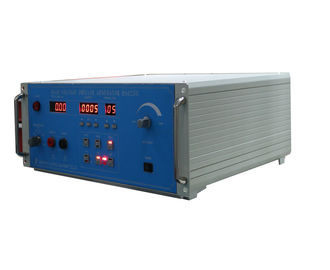

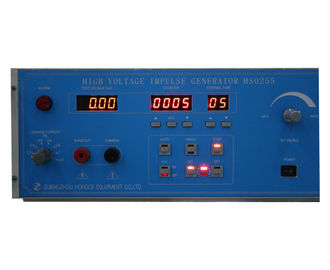

    High Voltage Impulse Generator HS0255 is manufactured in accordance with the IEC60255-5 "Insulation Test of Electrical Relays" promulgated by the International Electrotechnical Commission (IEC), measuring the insulation coordination of relays and protective devices, and performing impulse voltage tests.



    High Voltage Impulse Generator Introduction



    1. Main Specifications

    Test pulse output waveform:Voltage wave: 1.2/50 μs,Output voltage waveform peak: 500V~15 kV

    Output polarity: positive or negative (can automatically alternate polarity)

    Surge output mode: manual or automatic

    Number of surges: 1~9999 times

    Surge interval: 3~99 seconds (3 seconds is the inherent charging time of the device)

    Leakage current alarm range: 0.3A-1A adjustable



    2. Normal working conditions

    Ambient temperature: -5 °C ~ 50 °C

    Relative temperature: ≤70%

    Atmospheric pressure: 86~106 KPa

    Rated working voltage: 220V±10% 50/60Hz



    3. Pulse generating unit equivalent circuit



    IEC60255-5 Electrical Appliance Tester High Voltage Impulse Generator Output Voltage Waveform Peak From 500V To 15 kV



    4. Output waveform definition

    Voltage wave

    Leading edge time: T1=1.67T=1.2μs±30%

    Half-peak time: T2=50μs±20%



    IEC60255-5 Electrical Appliance Tester High Voltage Impulse Generator Output Voltage Waveform Peak From 500V To 15 kV
