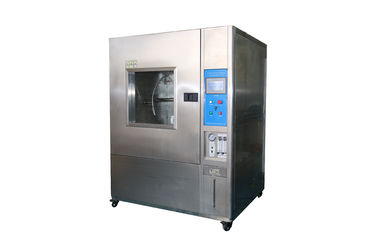

IEC60065 2014 Annex A Rain Oscillating Tube Test Chamber For Waterproof Detection For IPX3 IPX4

IEC60065 2014 Annex A Rain Oscillating Tube Test Chamber For Waterproof Detection For IPX3 IPX4

  • IEC60065 2014 Annex A Rain Oscillating Tube Test Chamber For Waterproof Detection For IPX3 IPX4
IEC60065 2014 Annex A Rain Oscillating Tube Test Chamber For Waterproof Detection For IPX3 IPX4
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HH0802A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Inner Box Size (mm): 1200×1200×1200 Rotating Speed(rpm): 1 ~5 Adjustable
Spray Ring Radius:(mm): 200,400 Removable And Replaceable Swing Angle Range Of The Oscillating Tube: 45°, 60°, 90°, 180°
Needle Hole(mm): φ0 .4 Distance Between Holes(mm): 50
High Light:

audio measurement equipment

,

drop test equipment

IEC60065:2014 Annex A Rain Oscillating Tube Test Chamber HH0802A



Standard:

Conforms to IEC60065:2014 Annex A, IEC60529



Application:

This equipment is suitable for the test of electrical products which are enclosure and sealed in the rain environment whether can ensure the good performance of equipment and components. The scientific design of this equipment, so that the equipment can be realistically simulated dripping water, water spraying, splashing water etc. The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack. The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted automatically.



Parameters:

  1. Inner box size (mm):1200×1200×1200
  2. Rotating speed(rpm):1 ~5 adjustable
  3. Spray ring radius:(mm): 200,400 removable and replaceable.
  4. Swing angle range of the oscillating tube:45°, 60°, 90°, 180°.
  5. Needle hole(mm):φ0 .4.
  6. Distance between holes(mm):50.
  7. Water flow of each hole:0.07 L/min +5%.
  8. Spray pressure(Kpa):80-150.
  9. Pendulum swing: Max.±180°.
  10. Swing speed: IP3 15times/min; IP4 5times/min
  11. Testing time:1-999,999min(can be set).
  12. The distance between the test equipment and the test sample:200MM. After the test, the function test can be proceeded after normal temperature recovery of 24 H.
  13. All stainless steel or powder coating, visible toughened glass window.
  14. Equipped with a modest turntable (used to place the sample) with adjustable speed.
  15. Control system: Independent research and development.
  16. Power Supply: 220V 50Hz.

Structural material:

1. High- quality acid -proof stainless steel 304 inner liner.

2. Outer box is made of stainless steel 304.

3. The sample table is equipped with a circular turntable with adjustable speed.
