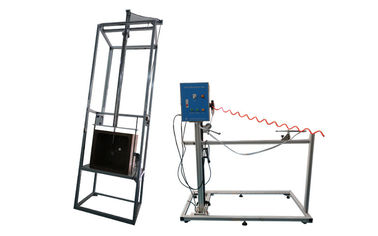

IEC60065 Clause 18.2 Explosion Proof Test Machine For Screen Size More Than 16cm Cathode Ray Tubes

IEC60065 Clause 18.2 Explosion Proof Test Machine For Screen Size More Than 16cm Cathode Ray Tubes

  • IEC60065 Clause 18.2 Explosion Proof Test Machine For Screen Size More Than 16cm Cathode Ray Tubes
IEC60065 Clause 18.2 Explosion Proof Test Machine For Screen Size More Than 16cm Cathode Ray Tubes
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HX9802
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Support Level: 750mm±50mm Test Baffle: W500mm*H250mm
Scratch Area: Diameter Of 20mm Range Of Steel Ball: Ø40mm,500g
High Light:

audio measurement equipment

,

drop test equipment

IEC60065 clause 18.2 Explosion Proof Test Machine For Cathode Ray Tubes HX9802



Standard:

Confirm to IEC60065 clause 18.2, IEC60950 Safety of information technology equipment, IEC60065-1 Audio, video and similar electronic apparatus-Safety requirements, IEC61965 Mechanical safety of cathode ray tubes.



Application:

For screen size more than 16cm of the cathode ray tubes anti explosion impact and mechanical impact verification, or explosion of the cathode ray tubes protecting verification to the equipment enclosure..



Test sample:

For screen size more than 16cm of the cathode ray tubes and other test equipment.



Feature:

The cathode ray tube is installed on the test chamber, the test chamber should be placed in a support level with height above the surface of 75cm±5cm,there should be no fragment more than 2g after testing each cathode ray tube, it is placed on the ground from the tube surface projection with 500mm, high 250mm of the baffle, and there should be no any fragment flying on the same baffle at 2000mm.



Parameters:

1. Use aluminum alloy material, beautiful appearance.

2. Equip with diamond scratch pin.

3. Support level:750mm±50mm

4. Test baffle:W500mm*H250mm

5. Scratch area:Diameter of 20mm

6. Range of steel ball: Ø40mm,500g.

7. Steel wire rope:ø0.6-0.8

8. Test item:Mechanical strength test (small ball impact test), explosion test (emission shock), high energy impact test
