| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third party calibration (cost additional) |
| Model Number: | HH0820 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood |
| Payment Terms: | L/C, T/T, Western Union |
| Standard: | IEC 60529 | Maximum Pressure: | 0.5MPa |
|---|---|---|---|
| Temperature: | 0~50℃ | Simulated Water Depth: | 0~50m |
| Wall Thickness: | 4mm | Pressure Control Mode: | Automatic |
| High Light: | waterproof tester,material testing equipment |
||

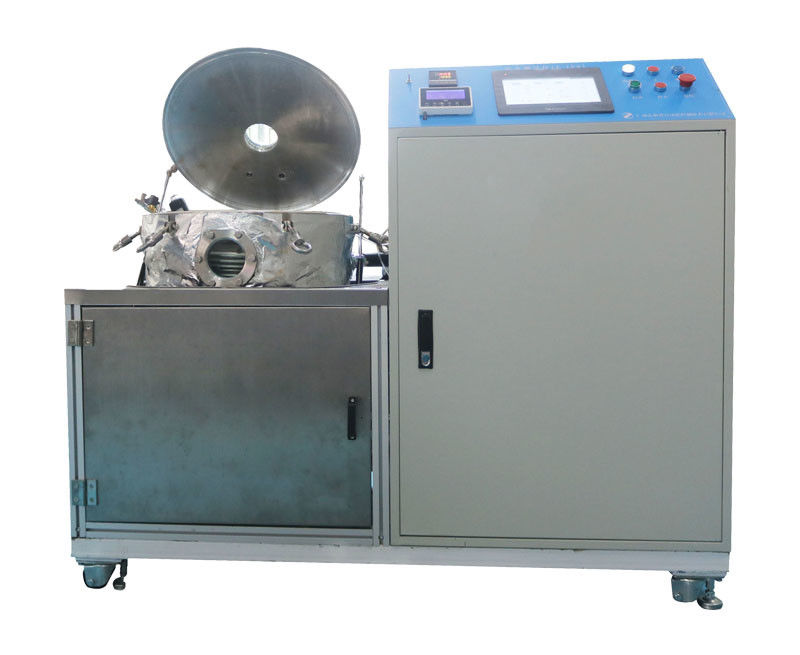

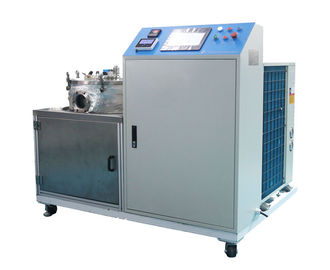

IPX8 Water Depth Simulation Pressure Immersion Test Device for Cellphone Notebook 0~5Bar

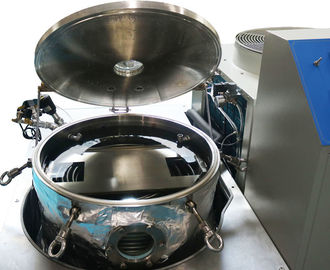

This IPX8 pressure water tightness test equipment is designed and manufactured according to IEC60529: 2013 "Enclosure protection class (IP code)", it uses stainless steel pressure vessel as test carrier, and simulates the water depth pressure by injecting gas with a certain pressure into the container through air compressor, the water temperature is adjusted by the refrigeration system and the heating system, and the liquid level height, pressure, time and temperature are automatically controlled by software.

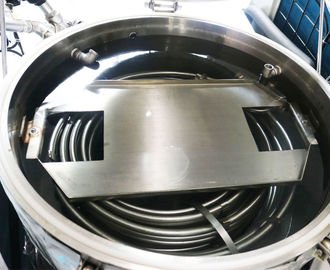

The operator is responsible for putting the workpiece into the platform on the barrel, covering the cover, setting parameters such as temperature, pressure and time. The equipment can automatically realize the whole process of pressure and water tightness test. After the test is completed, the liquid level will automatically drop and the constant temperature will be stopped.
Test Contents:
|
Waterproof test |
Water depth: 0.02 MPa (water depth 2 m equivalent); time: 30 minutes |
|
Lower limit temperature waterproof |
Water temperature: 0 ° C; water depth: Water depth specified in IPX8 testing; time: 30 minutes |
|
Upper limit temperature waterproof |
Water temperature: 45 ° C; water depth: Water depth specified in IPX8 testing; time: 30 minutes |
|
Waterproof |
Water temperature: room temperature; water depth: IPX8 0.015MPa (water depth 1m equivalent); time: 30min in water → 1h in air → 30min in water |
|
Shower gel waterproof |
Water temperature: room temperature; water depth: 0.003 MPa (water depth 30 cm equivalent); time: 5 minutes. Shower gel ME update |
|
Control unit |
Control the system |
Total control including time, pressure, temperature, and liquid level |
|
Test sample |
Information technology equipment which requires IPX8 for waterproof rating |
Maximum test sample supports 15-inch laptop |
|
Pressurized container
|
Number of containers |
1 |
|
Container inside size |
Match 15 inch notebook |
|
|
Pressurizing unit |
Pressure holding range |
Atmospheric pressure -0.3MPa, with pressure display; pressure gauge accuracy 0.25 (0.003 MPa,0.02 MPa,0.015MPa) |
|
Maximum pressure |
5bar | |
|
Dwell time control |
0-99 min 99 s | |
|
Temperature control unit |
Cooling range |
Room temperature to 0°C, cooling system cooling |
|
Heating range |
Room temperature -50°C, heating system heating | |
|
Liquid level control unit |
Level adjustment range |
About Φ100mm |
