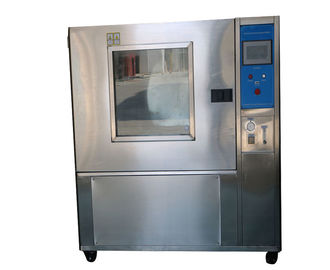

IEC60529-2001 Ingress Protection Test Equipment / Fig 2 Sand And Dust Test Chamber For IPX5 and IPX6

IEC60529-2001 Ingress Protection Test Equipment / Fig 2 Sand And Dust Test Chamber For IPX5 and IPX6
IEC60529-2001 Ingress Protection Test Equipment / Fig 2 Sand And Dust Test Chamber For IPX5 and IPX6 IEC60529-2001 Ingress Protection Test Equipment / Fig 2 Sand And Dust Test Chamber For IPX5 and IPX6 IEC60529-2001 Ingress Protection Test Equipment / Fig 2 Sand And Dust Test Chamber For IPX5 and IPX6 IEC60529-2001 Ingress Protection Test Equipment / Fig 2 Sand And Dust Test Chamber For IPX5 and IPX6

Large Image :  IEC60529-2001 Ingress Protection Test Equipment / Fig 2 Sand And Dust Test Chamber For IPX5 and IPX6

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: Third party calibration certificate(cost additional)
Model Number: HH0810

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood
Delivery Time: 30 days
Supply Ability: 10 set /month
Detailed Product Description
Test Sand (or Talc) Dosage: 2kg/m³ Vacuum Pump: Ultimate Vacuum:2Pa
Air Pressure Meter: 0~-1.0Mpa Sample Rack Height Adjustment Range: 0~750MM
Timing Accuracy: ±1min Air Flow Speed: ≤2m/s
High Light:

waterproof tester

,

material testing equipment



IEC60529-2001 Sand And Dust Test Chamber For IPX5 and IPX6 Test



product introduation



The sand and dust test chamber is designed and manufactured according to IEC60529-2001 < Degrees of protection provided by enclosure (IP code)> Fig 2, IEC60598-1-2008 and etc. It artificially simulates the dust environment to test the dust-proof ability of the test samples.

The test device is suitable for electrical products’ sand and dust test of first characteristic numeral 5 and 6 (IPX5 and IPX6). It is used to test sealing parts and enclosure’s sand and dust resistance capacity of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.

The chamber can provide a non-laminar flow of dust-loaded vertically circulating air, can be timed controlled; also be equipped with a vacuum pump which can vacuum the test sample, the exhaust volume and pressure can be adjusted; in addition, the inside chamber is configured with a airflow temperature control device, to ensure that the test is under standard environmental conditions.

The test equipment uses intelligent and humanized PLC control system, the inner of the test equipment is made of high quality SUS304 stainless steel, the enclosure is A3 plate electrostatic spraying. And it is also having large observation window and manual wiper device. The security protection is good.



Parameters:



Model HH0810
Working size(mm) L1500*W800*H800
Outer size (mm) L1850*W1350*H1800
Main technical parameters Temperature range Room temperature
Test dust dry talc which can go through the sieve of 75μm and the square sieve of wire diameter 50μm.
Test sand (or talc) dosage

2kg/m³



Vacuum pump Ultimate vacuum:2Pa
Air pressure meter 0~-1.0Mpa
Sample rack height adjustment range

0~750MM



Timing range



0~99 hours 59 min

Timing accuracy



±1min

Load cycle control



0~99 hours 59 min

Ash blowing cycle control



1s~9999 min
Sand and dust concentration 2~4kg/m3
Air flow speed ≤2m/s



Device Name Dust and Sand Test Chamber



Main configuration

Cabinet Enclosure material Stainless steel
Inner material SUS304B Stainless steel
Lead hole It is for test sample’s power cord to be connected to the external power supply
Observation window large observation window in the middle of the door
Electrical control system Controller

PLC Control:

A. blowing dust time (stop, blowing) can be adjusted

B. Cycle: arbitrary adjustable

C. Preset test time: 0.1H-9999.9H arbitrary adjustable

D. Power: On-off- On

E. There are accumulating function and power-off protection function

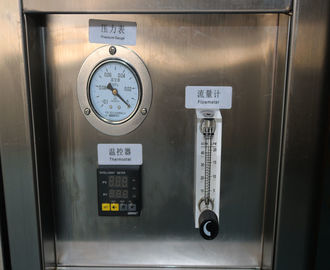

Vacuum system Equipped with a vacuum pump, pressure gauge, air filter, pressure regulator, connecting pipe

Security

Protection

Device

Power overload, short-circuit protection
Ground Protection
Voltage Protection
Motor phase loss protection
Alarm beep prompt



Picture for reference:



IEC60529-2001 Ingress Protection Test Equipment / Fig 2 Sand And Dust Test Chamber For IPX5 and IPX6 0
