IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment To Test Waterproof Performance

    • IEC60529 Figure 5  IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment  To Test Waterproof Performance
    • IEC60529 Figure 5  IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment  To Test Waterproof Performance
    • IEC60529 Figure 5  IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment  To Test Waterproof Performance
    • IEC60529 Figure 5  IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment  To Test Waterproof Performance
  • IEC60529 Figure 5  IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment  To Test Waterproof Performance

    Product Details:

    Place of Origin: China
    Brand Name: HongCe
    Certification: Third part Calibration Certificate(cost additional)
    Model Number: IPX-3,IPX-4,IPX-5,IPX-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Plywood
    Delivery Time: 35 days
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    IPX3/4 Spray Nozzle: IEC 60529 Figure 5 Brass Head IPX5 Spray Aperture (mm): Ø6.3mm
    IPX6 Spray Aperture (mm): Ø612.5mm IPX3/4 Spray Flow: 10 L/min±5%
    IPX5 Spray Flow: 12.5L/min±5% IPX6 Spray Flow: 100L/min±5%
    IPX3/4 Flowmeter: 5-20L/min One Piece IPX5 Flowmeter: 5-20L/min One Piece



    IEC60529 Figure 5 IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment



    Product information:



    The spray test system is designed and manufactured according to the standard IEC60529<<Degrees of protection provided by enclosures (IP Code)>>, used To Test Waterproof Performance of the electrical products which second characteristic is numeral 5/6.



    This machine is suitable for enclosure protection rating evaluation of electrical appliances and electronic equipment, against the harmful effects due to water entering the housing of the device.



    Technical parameters:



    Model IPX56A

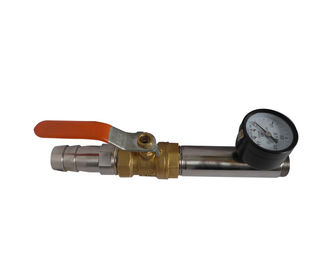

    IPX3/4 Spray nozzle IEC 60529 Figure 5 Brass head
    IPX5 Spray aperture (mm) Ø6.3mm
    IPX6 Spray aperture (mm) Ø12.5mm
    IPX3/4 Spray Flow 10 L/min±5%
    IPX5 Spray Flow 12.5L/min±5%
    IPX6 Spray Flow 100L/min±5%
    IPX3/4 Flowmeter 5-20L/min one piece
    IPX5 Flowmeter 5-20L/min one piece
    IPX6 Flowmeter 10-110L/min one piece
    The distance of IPX56 nozzle mouth to test products 2.5m-3m
    Water Pump A multi-stage stainless steel pumps
    Voltmeter 0~1Mpa
    Timer 1-9999Min
    Sample turntable Ø600mm,
    Sample turntable rotation speed 1~5r/min (adjustable),can rotate clockwise or counterclockwise
    Sample turntable material SUS304# stainless steel
    Reservoir (L) 500L
    Reservoir material SUS304# stainless steel
    IPX5/6 Input supply 208VAC 60HZ (Voltage fluctuations≦±10%)
    Breaker No fuse breaker
    Protective Leakage, No water , short-circuit
    Security system Pressure overload warning of water pump
    Frame Forming aluminum



    Specifications for sample turntable:

    1. Turntable Material: SUS304 stainless steel, diameter ф600mm. Turntable height is adjustable, adjustable range: 600-900mm.
    2. Maximum load: 50KG.
    3. Turntable rotation speed: 1-5 r / min adjustable.
    4. Turntable electrical part is fully sealed to prevent water leakage. Can equip with a waterproof universal socket.
    5. Turntable adopts to domestic high-speed motors, adjustable speed within the standard range. Containing a reducer (reduction ratio 1: 300)
    6. Turntable can rotate clockwise or counterclockwise
    7. There are four activities with brake casters beneath the turntable, easy for moving and stationary





    Picture view:

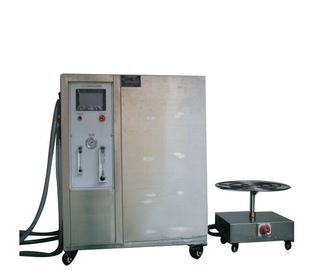

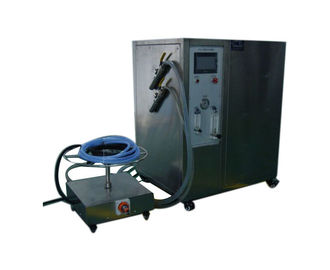

    IEC60529 Figure 5  IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment  To Test Waterproof Performance

    IEC60529 Figure 5  IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment  To Test Waterproof Performance



    IEC60529 Figure 5  IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment  To Test Waterproof Performance

    IEC60529 Figure 5  IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment  To Test Waterproof Performance



    IEC60529 Figure 5  IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment  To Test Waterproof Performance



    IEC60529 Figure 5  IPX3-4 Spray Nozzle IPX-5-6 Strong Water Spray Test Equipment  To Test Waterproof Performance
