| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate(cost additional) |
| Model Number: | HJ0615 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets per month |
| Power Supply: | AC220V 50Hz | Control And Operation: | PLC Intelligent Electrical Control, Touch Screen Operation |
|---|---|---|---|
| Working Station: | 3 Stations, Synchronous Working | Crank Speed: | 30r/min, Can Be Preset |
| Horizontal Moving Distance Of The Hose: | 300mm | Test Times: | 0-999999 Times, Can Be Preset |
| Size And Weight: | 1000×900×1100mm，100kg | ||
| High Light: | electrical appliance tester,portable appliance testing equipment |
||
IEC60335-2-2 Electrical Appliance Tester Current-Carrying Hoses Abrasion Resistance Tester With 3 Stations
Standard
This device meets the standard of IEC60335-2-2, clause 21.102 figure 101.
Application
Suitable for the Current-carrying hoses abrasion resistance tester.
Test sample
Vacuum cleaner hoses, water suction type cleaning apparatus tube, washing machine water pipe.
Feature
One end of the hose is attached to the connecting rod of the crank mechanism shown in Figure 101. The crank rotates at 30 revolutions per minute resulting in the end of the hose moving horizontally backwards and forwards over a distance of 300mm. The hose is supported by a rotating smooth roller over which a belt of abrasive cloth moves at a speed of 0.1 m/min. The abrasive is corundum grit size P 100, as specified in ISO 6344-2. A mass of 1 kg is suspended from the other end of the hose, which is guided to avoid rotation. In the lowest position, the mass has a maximum distance of 600 mm from the centre of the roller. Test test is carried out for 100 revolutions of the crank.
After the test, basic insulation shall not be exposed and the electric strength test of 16.3 is carried out between the conductors connected together and the saline solution.
Parameters
| Power supply | AC220V 50Hz. |
| Control and operation | PLC intelligent electrical control, touch screen operation |
| Working station | 3 stations, synchronous working |
| Crank speed | 30r/min, can be preset |
| Horizontal moving distance of the hose | 300mm |
| Belt of abrasive cloth moving speed | 0.1m/min |
| Test times | 0-999999 times, can be preset |
| Abrasive belt | Corundum grit size P 100, as specified in ISO 6344-2. |
| Mass weight | 1 kg |
| Mass has a maximum distance from the centre of the roller | 600 mm |
| Size and weight | 1000×900×1100mm,100kg |

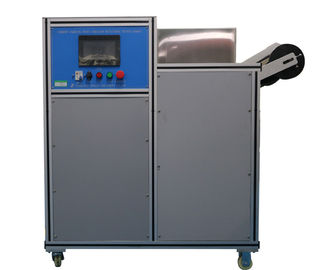

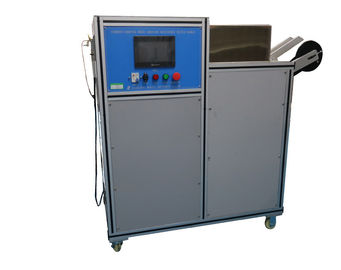

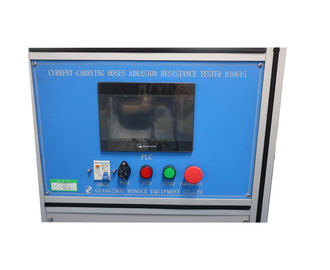

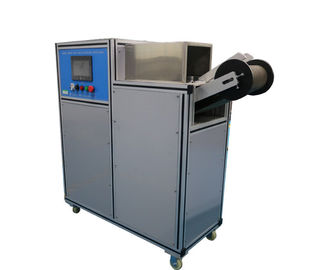

Picture for reference
