Place of Origin: | China |
Brand Name: | HongCe |
Certification: | Third part calibration certificate(cost additional) |
Model Number: | H9922A |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiatable |
Packaging Details: | Plywood |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 sets per month |
Power Supply: | 220V 50Hz | Speed Of Rotation: | 5 R/min |
---|---|---|---|
Drop Times: | 10 Times/min | Material: | 3 Mm Steel |
Height: | 500 Mm | Counter: | 0-9999 |
Conforms To Standard: | IEC 60598-1 | ||
High Light: | light testing equipment,led light tester |
IEC 60884-1 Plug Socket Tester Tumbling Barrel Tester With 3 Mm Steel
Product Introduction
This tester conforms to the standard requirement of IEC60598-1. It is used to check the drop resistance of electrical accessories. The falling times can be preset. The device stops working automatically when the preset times completed.
Technical Parameters
Power Supply | 220V 50Hz |
Speed of rotation | 5 r/min |
Drop times | 10 times/min |
Counter | 0~9999 |
Material | 3 mm steel |
Height | 500mm |
Conforms to standard | IEC60598-1 |
Test Method
1. Place the tester on a level ground, connect to specified power supply.
2. Set test times. Press left arrow choose digit position, up and down arrow to set value, then press【MD】save.
3. Put test sample into the barrel, lock the door.
4. Press start, tester starting rotating.
5. Tester will alarm and stop automatic when preset test times completed. Press【Reset】eliminate the alarm.
6. Take out test sample, check the test result.
Note: please use specified power supply, improper power supply affect the rotating speed and may damage the motor.

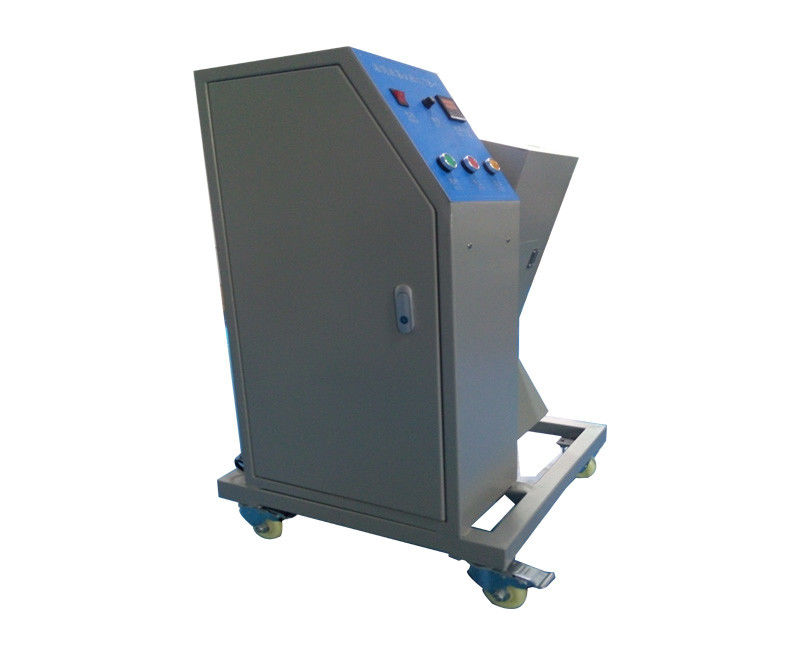

Picture for reference:
