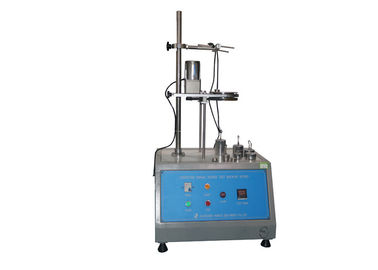

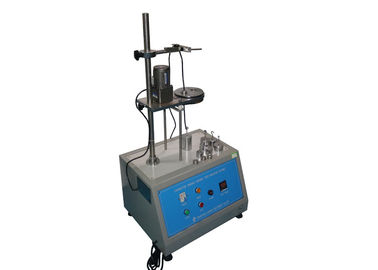

IEC Testing Device IEC60884 Clause 12.2.2 Single Working Station Conductor Damage Degree

IEC Testing Device IEC60884 Clause 12.2.2 Single Working Station Conductor Damage Degree

  • IEC Testing Device IEC60884 Clause 12.2.2 Single Working Station Conductor Damage Degree
  • IEC Testing Device IEC60884 Clause 12.2.2 Single Working Station Conductor Damage Degree
  • IEC Testing Device IEC60884 Clause 12.2.2 Single Working Station Conductor Damage Degree
  • IEC Testing Device IEC60884 Clause 12.2.2 Single Working Station Conductor Damage Degree
IEC Testing Device IEC60884 Clause 12.2.2 Single Working Station Conductor Damage Degree
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HC9903
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 15 ays
Payment Terms: T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Working Station: Single Working Station Standard: IEC60884
Test Sample: Terminals, Connectors Test Rate: 10±2 RPM
Test Height: 260, 280, 300, 320mm Diameter Of Ferrule Hole: 6.5, 9.5, 13, 14.5mm
High Light:

electric socket tester

,

socket tester

IEC60884 Clause 12.2.2 Single Working Station Conductor Damage Degree IEC Testing Device



Standard: IEC60884-1 2013 clause 12.2.2, 12.3.10 and figure 11, IEC60669-1, UL486A-B



Application: This device is use to check whether the terminals with screw and screwless terminals can bears the mechanism force under normal operation. Mainly use to judge whether the design and structure of screw clamping terminals meet the requirement of clamp the conductors without excessive damage.



Test sample: Terminals, connectors

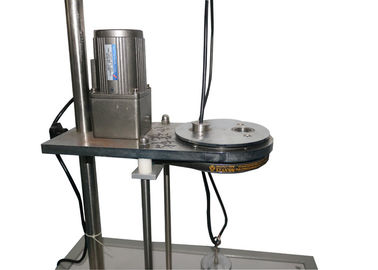

Feature: Adopt the structure of guide rail. Can preset test times, while testing, tester will automatic stop when preset test times completed, and output sound alarm signal.



Parameters:



Model HC9903 HC9903A HC9903B(2 stations)
Test rate 10±2 RPM 10±2 RPM 9±1 RPM
Diameter of gyration 75mm 75mm 76mm
Test times 0~9999 0~9999 0~9999

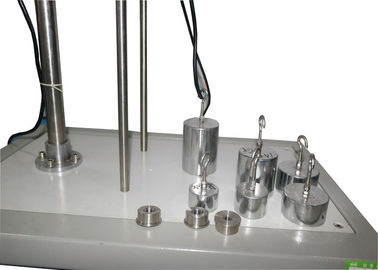

Weights 0.3, 0.4, 0.7, 0.9, 1.4, 2kg 0.3, 0.4, 0.7, 0.9, 1.4, 2, 2.9, 4.5, 5.9, 6.8, 8.6, 9.5, 10.4, 14, 15, 16.8, 20, 22.7kg 0.7, 0.9, 1.4, 2.3, 3.6, 4.5, 6.8, 11.4, 13.6, 18.2, 22.7, 27.2, 36.3, 45.4kg
Test height 260, 280, 300, 320mm 250~500mm 250~500mm
Diameter of ferrule hole 6.5, 9.5, 13, 14.5mm 6.5~28.6mm, 12 pc 6.5~28.6mm, 12 pc
Standards IEC60884-1, IEC60669-1 IEC60998-2-2 UL486A-B, UL498



IEC Testing Device IEC60884 Clause 12.2.2 Single Working Station Conductor Damage Degree 0IEC Testing Device IEC60884 Clause 12.2.2 Single Working Station Conductor Damage Degree 1IEC Testing Device IEC60884 Clause 12.2.2 Single Working Station Conductor Damage Degree 2
