Stainless Steel Plug Socket Tester , Clause 10.1 300N Plug Compression Mechanical Strength Test Equipment

Stainless Steel Plug Socket Tester , Clause 10.1 300N Plug Compression Mechanical Strength Test Equipment

  • Stainless Steel Plug Socket Tester ,  Clause 10.1 300N Plug Compression Mechanical Strength Test Equipment
  • Stainless Steel Plug Socket Tester ,  Clause 10.1 300N Plug Compression Mechanical Strength Test Equipment
  • Stainless Steel Plug Socket Tester ,  Clause 10.1 300N Plug Compression Mechanical Strength Test Equipment
  • Stainless Steel Plug Socket Tester ,  Clause 10.1 300N Plug Compression Mechanical Strength Test Equipment
  • Stainless Steel Plug Socket Tester ,  Clause 10.1 300N Plug Compression Mechanical Strength Test Equipment
Stainless Steel Plug Socket Tester ,  Clause 10.1 300N Plug Compression Mechanical Strength Test Equipment
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HC9902
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Standard: IEC60884 Weights: 300N
Operation: Manual Test Time: 1min
Material: Stainless Steel Station: 1 Station
High Light:

electric socket tester

,

socket tester



IEC60884 Clause 10.1 300N Plug Compression Mechanical Strength Test Equipment



Product information:

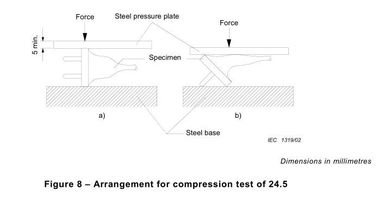

The specimens are subjected to a compression test as shown in figure 8, the temperature of the pressure plate, of the base and of the specimens being (23±2) ℃ and the force applied being 300 N.

The specimens are first placed in position a), as shown in figure 8, and the force is applied for 1 min. They are then placed in position b), as shown in figure 8, and again subjected to the force for 1 min.

The specimens are removed from the test apparatus and after 15 min they shall show no damage within the meaning of this standard.



Standard: IEC 60884-1 2013 clause 10.1, 24.5 and figure 8



Application: This device is use for testing the compression resistance performance of plug, check whether the mechanical strength of plug comply with standard requirements.



Test sample: Plugs



Feature: This device applying compression force 300N by weights. The temperature of the pressure plate, of the base and of the specimens being 23±2℃, compress the plug in two position show as figure 8a) and 8b), each position for 1min.



Parameters:



Item Parameters
Weights 300N (pile up with 2 150N weights)
Station 1 station
Operation manual
Test time 1min
Standard IEC60884
Test sample Plugs

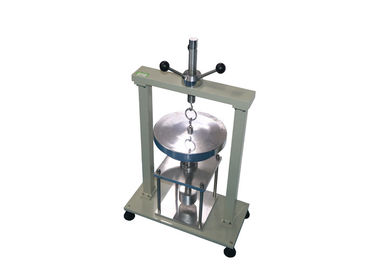

Stainless Steel Plug Socket Tester ,  Clause 10.1 300N Plug Compression Mechanical Strength Test Equipment 0

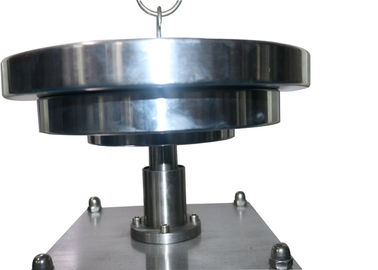

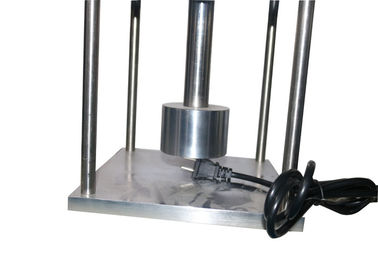

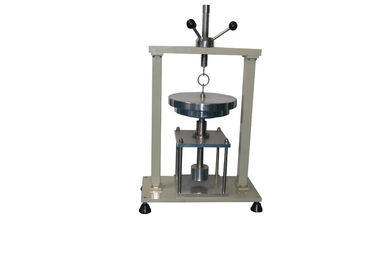

Stainless Steel Plug Socket Tester ,  Clause 10.1 300N Plug Compression Mechanical Strength Test Equipment 1Stainless Steel Plug Socket Tester ,  Clause 10.1 300N Plug Compression Mechanical Strength Test Equipment 2Stainless Steel Plug Socket Tester ,  Clause 10.1 300N Plug Compression Mechanical Strength Test Equipment 3
