Manual Plug Socket Tester For Checking The Impact Resistance At Low Temperature Test

Manual Plug Socket Tester For Checking The Impact Resistance At Low Temperature Test

  • Manual Plug Socket Tester For Checking The Impact Resistance At Low Temperature Test
  • Manual Plug Socket Tester For Checking The Impact Resistance At Low Temperature Test
  • Manual Plug Socket Tester For Checking The Impact Resistance At Low Temperature Test
  • Manual Plug Socket Tester For Checking The Impact Resistance At Low Temperature Test
Manual Plug Socket Tester For Checking The Impact Resistance At Low Temperature Test
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HC9924
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 25 set /month
Contact Now
Detailed Product Description
Model: HC9924 Standard: IEC60884clause 24.4 Figure 27and 42,IEC60811
Station: Single Station(can Be Customized ) Height Of The Impact (mm): 100
Steel Intermediate Piece: Φ20, Bottom End Rounded R300, 100g Operation: Manual
High Light:

socket tester

,

electrical plug tester

IEC60884 Clause 24.4 Testing Device For Checking The Impact Resistance At Low Temperature Test Apparatus





Standard: IEC 60884-1 2013 clause 24.4, 30.4, figure 27 and 42, IEC60811-1-4, VDE0620 and so on



Application: This device is use for checking the impact resistance at low temperature of electrical accessories, as well as wires and cables.



Test sample: Electrical accessories, surface type mounting boxes, screw glands, covers, wires and cables etc.



Feature: This device should be used with low temperature chamber, the device should be placed on the sponge rubber pad of about 40mm thick, and should be put in the low temperature chamber before and during the test.



Parameters:

Model Impact test apparatus H924 Impact test apparatus H924A
Station Single station Three stations
Weight of the impact hammer (g) 1000±2 and 100±1 100, 200, 300, 400, 500, 600, 750, 1000, 1250, 1500(See table 1 and 2)
Height of the impact (mm) 100 100
Steel intermediate piece Φ20, bottom end rounded R300, 100g Φ20, bottom end rounded R300, 100g
Standard

IEC60884-1 24.4 Figure 27

IEC60884-1 30.4 Figure 42

IEC60811-1-4
Operation Manual, mechanical release Manual, mechanical release





Table1 For power cables for fixed installation, the mass of the hammer for testing the samples shall be as given in the following table:

Overall diameter (mm) Mass of hammer (g)
Above Up to and including
- 4.0 100
4.0 6.0 200
6.0 9.0 300
9.0 12.5 400
12.5 20.0 500
20.0 30.0 750
30.0 50.0 1000
50.0 75.0 1250
75.0 - 1500



Table 2 For flexible cables and cords and telecommunication cables, the mass of the hammer for testing the sample shall be as follows:

Overall diameter (mm) Mass of hammer (g)
Above Up to and including
For flat cords 100
- 6.0 100
6.0 10.0 200
10.0 15.0 300
15.0 25.0 400
25.0 35.0 500
35.0 - 600

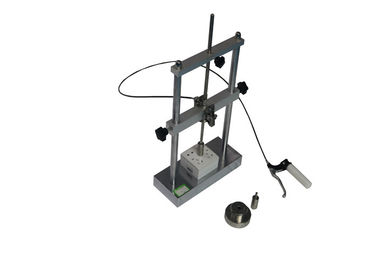

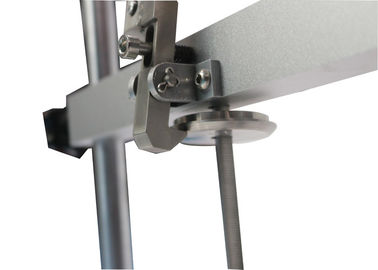

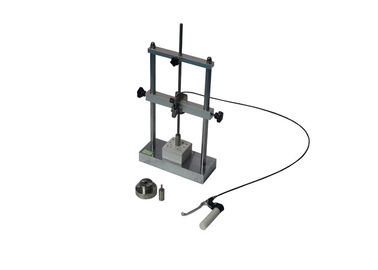

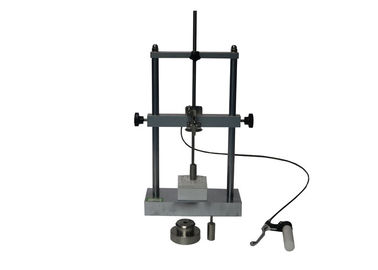

Picture for reference :

Manual Plug Socket Tester For Checking The Impact Resistance At Low Temperature Test 0

Manual Plug Socket Tester For Checking The Impact Resistance At Low Temperature Test 1

Manual Plug Socket Tester For Checking The Impact Resistance At Low Temperature Test 2
