Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: HC9907
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Material: Stainless Steel Standard: IEC60884clause 24,figure 14
1Steel Rod: Φ4.8mm Weight: 100N
Operation: Manual Testing Time: 1 Minute
High Light:

socket tester

,

electrical plug tester

IEC60884 Clause 24 Measuring Non-Solid Pins Mechanical Strength Stainless Steel Testing Machine



Product information:The appliance is checked by the test of IEC60884-1clause 24, figure 14, for pins which are not solid, by the following test which is made after the test of clause 21. A force of 100 N is exerted on the pin, which is supported as shown in IEC60884-1, IEC60884-1, figure 14, for 1 min in a direction perpendicular to the axis of the pin, by means of a steel rod having a diameter of 4,8 mm, the axis of which is also perpendicular to the axis of the pin. During the application of the force, the reduction of the dimension of the pin at the point where the force is applied shall not exceed 0,15 mm. After removal of the rod, the dimensions of the pin shall not have changed by more than 0,06 mm in any direction.



Standard: IEC 60884-1 2013 clause 14.2 figure 14



Application: This device is use to test the mechanical strength of Pins of portable accessories.



Test sample: Non-solid pins



Feature: Apply a 100N force as per standard requirements with standard requirements.



Parameters:



Steel rod Φ4.8mm
Weight 100N
Test standard IEC 60884-1 2013 clause 14.2 figure 14
Manual rotating the wheel so that the pin bearing pressure, time for 1min.

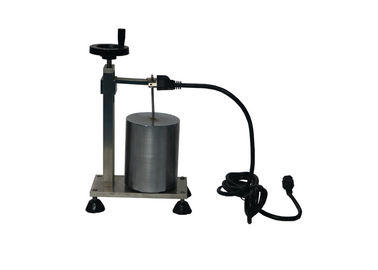

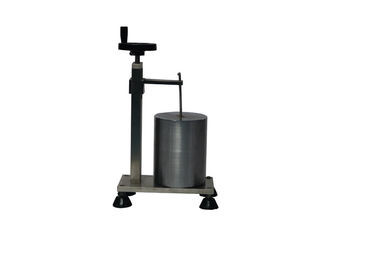

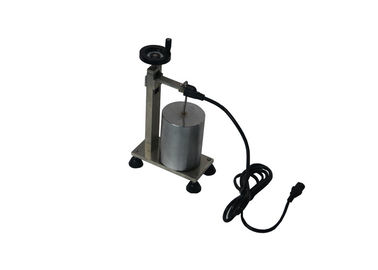

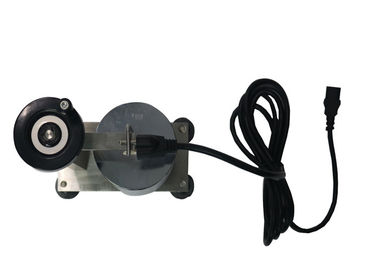

IEC Test Equipment , Clause 24 Measuring Non-Solid Pins Mechanical Strength Testing Machine 0IEC Test Equipment , Clause 24 Measuring Non-Solid Pins Mechanical Strength Testing Machine 1IEC Test Equipment , Clause 24 Measuring Non-Solid Pins Mechanical Strength Testing Machine 2Picture for reference:

 IEC608841 Standard Scope:
This standard also applies to plugs which are a part of cord sets, to plugs and portable socket-outlets which are a part of cord extension sets and to plugs and socket-outlets which are a component of an appliance, unless otherwise stated in the standard for the relevant appliance.
Replace the penultimate paragraph and Note 4 by the following new paragraph and Note 4 and add new Note 5 as follows:
Plugs and socket-outlets complying with this standard should be suitable for use at ambient temperatures not normally exceeding +40 ℃, but their average over a period of 24 h does not exceed +35℃, with a lower limit of the ambient air temperature of -5℃.
