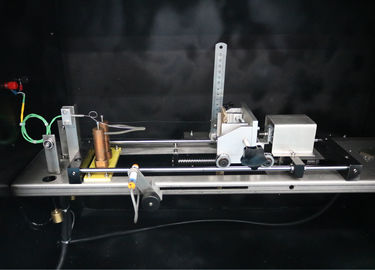

IEC60695-2-10 Glow Wire Tester Simulates The Thermal Stress Caused By The Heat Source Control

IEC60695-2-10 Glow Wire Tester Simulates The Thermal Stress Caused By The Heat Source Control

  • IEC60695-2-10 Glow Wire Tester Simulates The Thermal Stress Caused By The Heat Source Control
  • IEC60695-2-10 Glow Wire Tester Simulates The Thermal Stress Caused By The Heat Source Control
  • IEC60695-2-10 Glow Wire Tester Simulates The Thermal Stress Caused By The Heat Source Control
  • IEC60695-2-10 Glow Wire Tester Simulates The Thermal Stress Caused By The Heat Source Control
IEC60695-2-10 Glow Wire Tester Simulates The Thermal Stress Caused By The Heat Source Control
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third party calibration certificate(cost additional)
Model Number: GW-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Control Model: Button Control Glowing Filament: Ф4mm ± 0.04mm
Thermocouple: 1mm Import K Thermocouple,the Temperature Resistance Of Armour Is 1100 ℃ ( Better Than The Standard Of 1050 ℃ ) Ohmic Heating Temperature Of Glowing Filament: 500 ℃ ~ 960 ℃ ( Digital Display Can Be Preset ) ,temperature Fluctuation < 3 ℃
Specimen Pressure On Glowing Filament: 0.95N±0.1N( Adjustable ) Specimen Movement Speed: 10mm /s ~ 25mm /s
High Light:

IEC60695-2-10 Glow Wire Tester

,

10mm/s Glow Wire Tester

Glow-Wire Tester



Product Introduction



This device is manufactured according to the standard of IEC60695-2-10, IEC60695-2-13. It also conforms to the standard requirement of UL746A. This device simulates the thermal stress caused by the heat source or ignition source such as the glowing elements or overload power within the short period of time, applicable to the fire hazard test for the electric and electronic products, household appliances and the materials, and also used for the no-flame ignition source fire test in order to measure the ignition temperature, flammability and heat-resistance index of the glow wire made of the relevant materials.



The test equipment adopts to solenoid valve switch to control the burning depth of test sample and equipped with measuring gauge. The test sample will break away automatically from glowing filament after reaching the set time. Also adopting the original imported UK LAB K type armour (Ф1mm) whose temperature resistance is up to 1100° (exceed 1050°of standard requirement), this device is with accuracy temperature control.



Technical Parameters



Glowing filament Ф4mm ± 0.04mm Ni/Cr(77/20) special standard ring shape,horizontal standing
Thermocouple 1mm import K thermocouple,the temperature resistance of armour is 1100 ℃ ( better than the standard of 1050 ℃ )
Ohmic heating temperature of glowing filament 500 ℃ ~ 960 ℃ ( digital display can be preset ) ,temperature fluctuation < 3 ℃
Specimen pressure on glowing filament 0.95N±0.1N( adjustable )
Maximum depth of heating 7mm ± 0.5mm
Specimen movement speed 10mm /s ~ 25mm /s
Testing time 30s±0.1s(1s ~ 999.9s digital display preset )
Thickness of ignite bedding board thickness10mm ,white pine board cover 12g /m 2 ~ 30g /m² standard silk paper
Volume of test site ≥ 0.5m 3 black background ,background illuminance ≤ 20Lx
Dimension and weight

W: 1105mm × D: 580mm × H: 1300mm

Gas vent:100mm ,140kg

Power 1kVA 220V±10% /50Hz( can customed by the customer)
